Title:
Aluminum Spacer 5/16'' OD x .252'' ID x .145'' Long
SKU:
SP31-.252-.145
2-3 day lead time
Unit Price$1.11
| Quantity | Price Each (USD) |
|---|---|
| 1-24 | $1.11 |
| 25-249 | $0.67 |
| 250-2499 | $0.33 |
| 2500+ | $0.11 |
Title:
Aluminum Spacer 5/16'' OD x .252'' ID x .145'' Long
SKU:
SP31-.252-.145
Description:

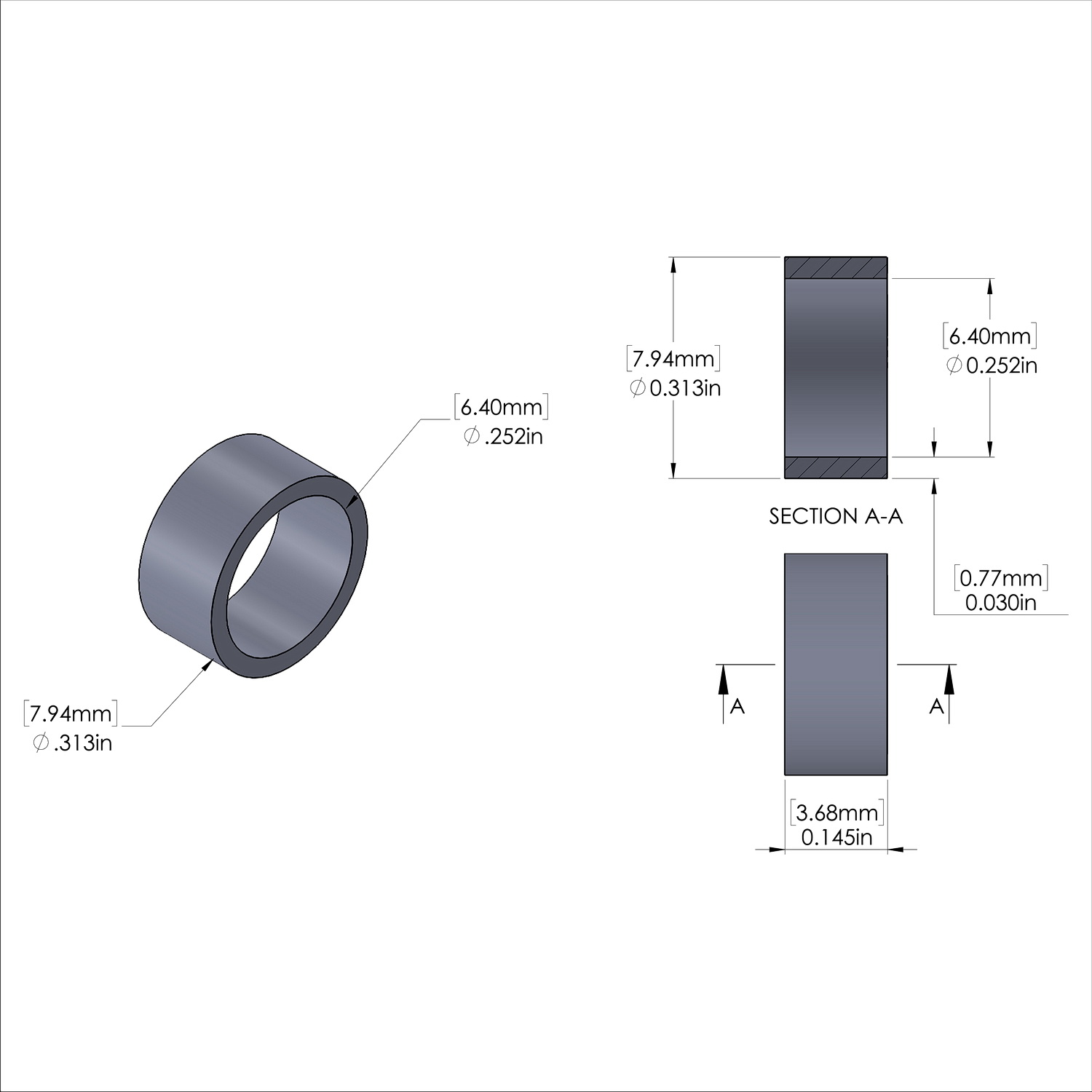

OD = 0.313'' (5/16'') 7.94mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.252'' 6.40mm (Standard tolerance: +/-.003'', +/-.075mm)L = 0.145'' 3.683mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.03'' 0.762mmWeight = 0.37 lbs/M 0.169 kg/K
Title:
Aluminum Spacer 5/16'' OD x .252'' ID x .145'' Long
SKU:
SP31-.252-.145
| Sku |
SP31-.252-.145
|
| Inside Diameter |
0.252''
|
| Outside Diameter |
5/16''
|
| Material |
Aluminum
|
| Material Grade |
6061-T6
|
| Outer Diameter |
5/16'' (8mm)
|
| Screw/Bolt Size | 1/4" Bolt |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
