Aluminum Spacer 5/16'' OD x .252'' ID x 9/64'' Long
Title:
Aluminum Spacer 5/16'' OD x .252'' ID x 9/64'' Long
SKU:
SP31-.252-9
Description:

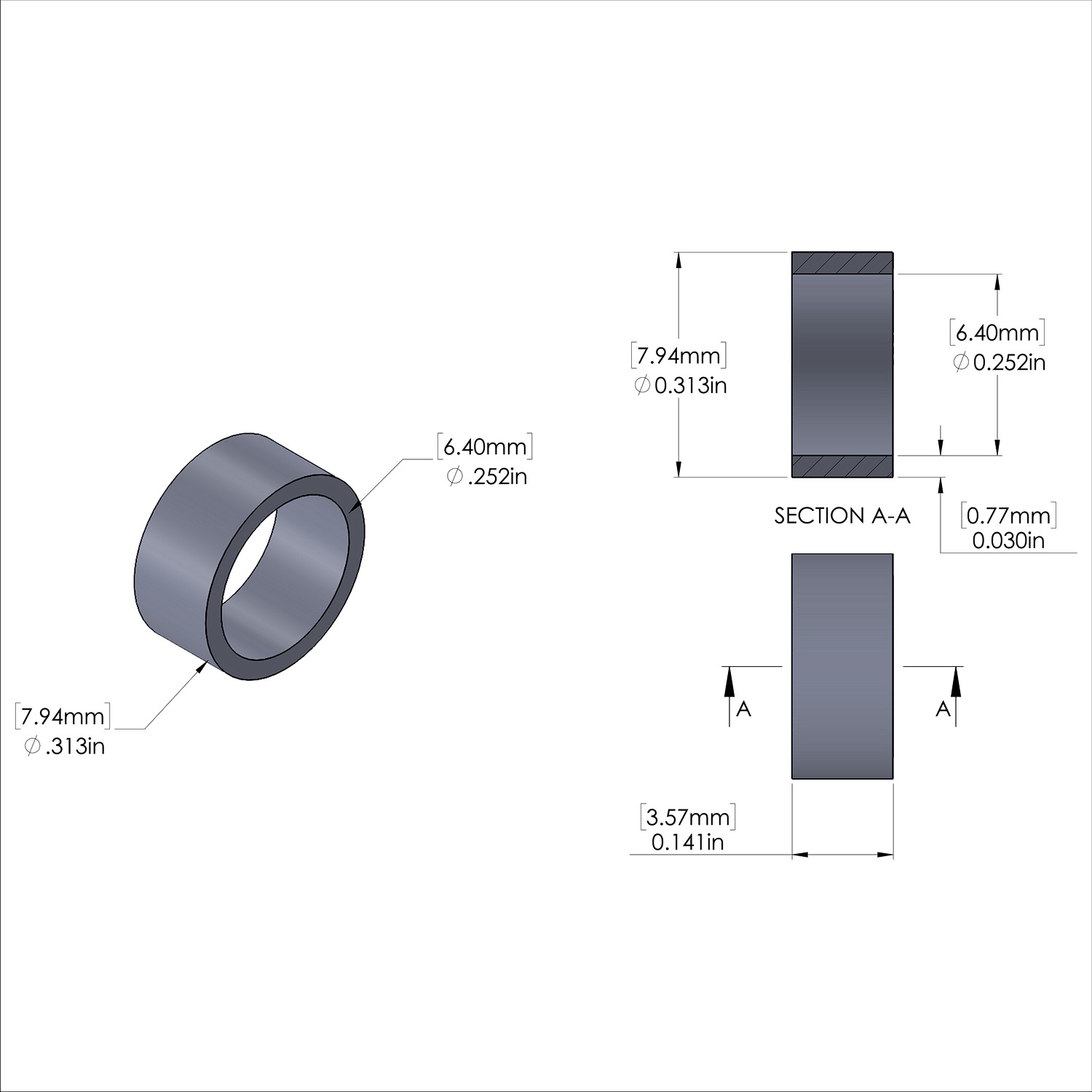

OD = 0.313'' (5/16'') 7.94mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.252'' 6.40mm (Standard tolerance: +/-.003'', +/-.075mm)L = 0.140'' (9/64'') 3.571mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.03'' 0.762mmWeight = 0.37 lbs/M 0.169 kg/K
Title:
Aluminum Spacer 5/16'' OD x .252'' ID x 9/64'' Long
SKU:
SP31-.252-9
| Sku |
SP31-.252-9
|
| Inside Diameter |
0.252''
|
| Outside Diameter |
5/16''
|
| Material |
Aluminum
|
| Material Grade |
6061-T6
|
| Length |
9/64''
|
| Outer Diameter |
5/16'' (8mm)
|
| Screw/Bolt Size | 1/4" Bolt |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
