Aluminum Spacer 6.35mm OD x 3.1mm ID x 2mm Long

Aluminum Spacer 6.35mm OD x 3.1mm ID x 2mm Long, Plain Aluminum Finish

  1. Home
  2. Aluminum Spacer 6.35mm OD x 3.1mm ID x 2mm Long, Plain Aluminum Finish
Aluminum Spacer 6.35mm OD x 3.1mm ID x 2mm Long, Plain Aluminum Finish
Title:
Aluminum Spacer 6.35mm OD x 3.1mm ID x 2mm Long, Plain Aluminum Finish
SKU: SPAS6.35-3-2
2-3 day lead time
Unit Price$0.66
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 6.35mm OD x 3.1mm ID x 2mm Long, Plain Aluminum Finish
SKU: SPAS6.35-3-2
Aluminum Spacer 6.35mm OD x 3.1mm ID x 2mm Long, Plain Aluminum Finish
Description:

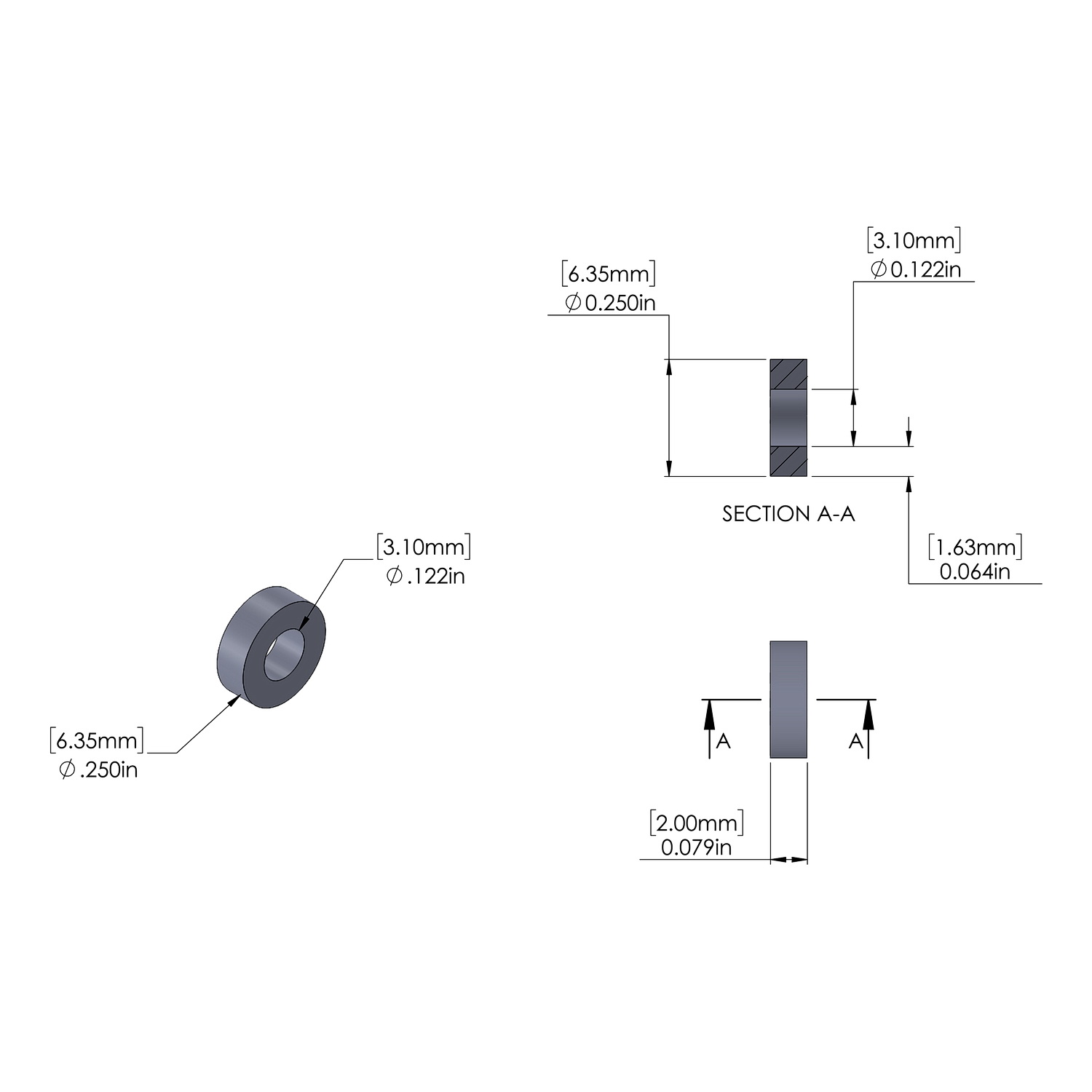

OD = 0.25'' (1/4'') 6.35mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.122'' 3.1mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.079'' 2mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.06'' 1.62mmWeight = 0.29 lbs/M 0.13 kg/K
Title:
Aluminum Spacer 6.35mm OD x 3.1mm ID x 2mm Long, Plain Aluminum Finish
SKU: SPAS6.35-3-2
Sku
SPAS6.35-3-2
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
3.1mm
Outside Diameter
6.35mm
Material Grade
6061-T6
Length
2mm
Outer Diameter
1/4'' (6.35mm)
Screw/Bolt Size #4 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
