Aluminum Spacer 6.35mm OD x 3.2mm ID x 22.5mm Long, Plain Aluminum Finish
Title:
Aluminum Spacer 6.35mm OD x 3.2mm ID x 22.5mm Long, Plain Aluminum Finish
SKU: SPAS6.35-3.2-22.5
2-3 day lead time
Unit Price$0.69
Quantity Price Each (USD)
1-24
$0.69
25-249 $0.48
250-2499 $0.41
2500+ $0.35
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 6.35mm OD x 3.2mm ID x 22.5mm Long, Plain Aluminum Finish
SKU: SPAS6.35-3.2-22.5
Aluminum Spacer 6.35mm OD x 3.2mm ID x 22.5mm Long, Plain Aluminum Finish
Description:

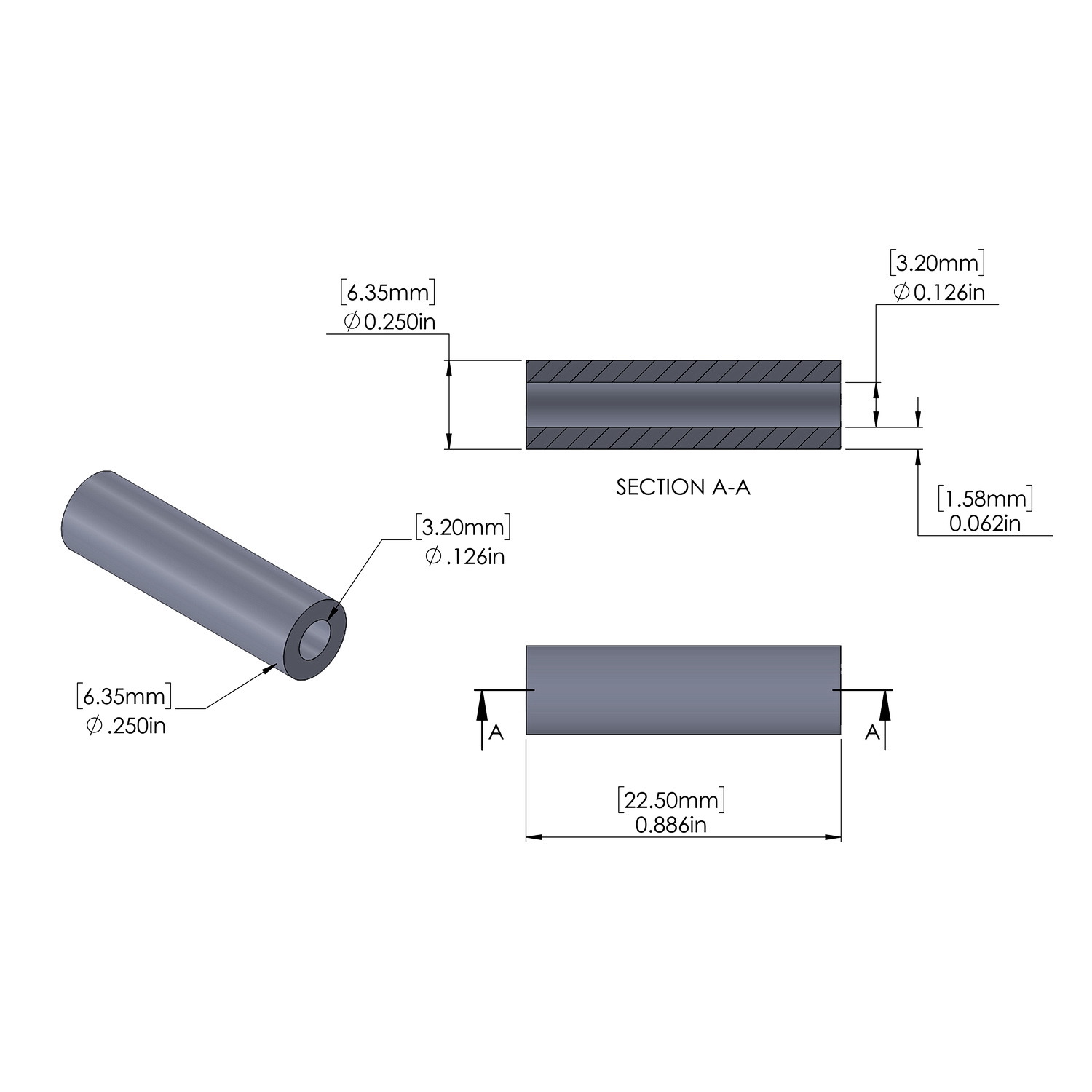

OD = 0.25'' (1/4'') 6.35mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.126'' 3.2mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.886'' 22.5mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.062'' 1.58mmWeight = 2.03 lbs/M 0.92 kg/K
Title:
Aluminum Spacer 6.35mm OD x 3.2mm ID x 22.5mm Long, Plain Aluminum Finish
SKU: SPAS6.35-3.2-22.5
Sku
SPAS6.35-3.2-22.5
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
3.2mm
Outside Diameter
6.35mm
Material Grade
6061-T6
Length
22.5mm
Outer Diameter
1/4'' (6.35mm)
Screw/Bolt Size #4 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
