Aluminum Spacer 7/16'' OD x .257'' ID x 1-1/16'' Long
Title:
Aluminum Spacer 7/16'' OD x .257'' ID x 1-1/16'' Long
SKU:
SP44-14-68
2-3 day lead time
Unit Price$1.96
| Quantity | Price Each (USD) |
|---|---|
| 1-24 | $1.96 |
| 25-249 | $1.18 |
| 250-2499 | $0.59 |
| 2500+ | $0.20 |
Title:
Aluminum Spacer 7/16'' OD x .257'' ID x 1-1/16'' Long
SKU:
SP44-14-68
Description:

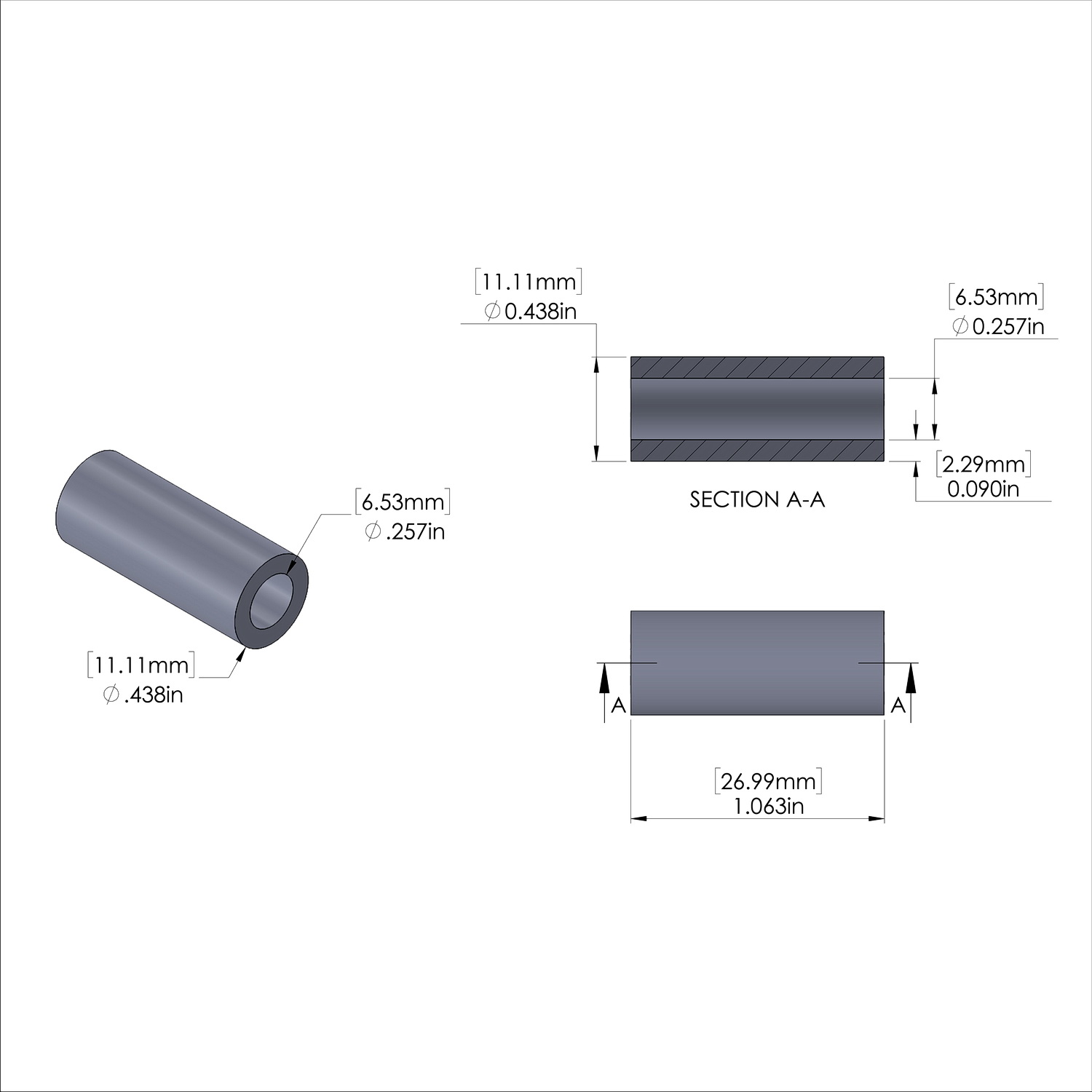

OD = 0.4375'' (7/16'') 11.1mm (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.257'' 6.53mm (Standard tolerance: +/-.003'', +/-.075mm)L = 1.063'' (1-1/16'') 26.988mm (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.09'' 2.29mmWeight = 15.04 lbs/M 6.83 kg/K
Title:
Aluminum Spacer 7/16'' OD x .257'' ID x 1-1/16'' Long
SKU:
SP44-14-68
| Sku |
SP44-14-68
|
| Inside Diameter |
0.257''
|
| Outside Diameter |
7/16''
|
| Material |
Aluminum
|
| Material Grade |
6061-T6
|
| Length |
1-1/16''
|
| Outer Diameter |
7/16'' (11.1mm)
|
| Screw/Bolt Size | 1/4" Bolt |
| Outside Diameter Tolerance | +/-.005'', +/-.125mm |
| Inside Diameter Tolerance | +/-.003'', +/-.075mm |
| Length Standard Tolerance | +/-.005'', +/-.125mm |
