Aluminum Spacer 7/16'' OD x .257'' ID x 13/16'' Long

Aluminum Spacer 7/16'' OD x .257'' ID x 13/16'' Long
Title:
Aluminum Spacer 7/16'' OD x .257'' ID x 13/16'' Long
SKU: SP44-14-52
2-3 day lead time
Unit Price$1.44
Quantity Price Each (USD)
1-24
$1.44
25-249 $0.86
250-2499 $0.43
2500+ $0.14
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 7/16'' OD x .257'' ID x 13/16'' Long
SKU: SP44-14-52
Aluminum Spacer 7/16'' OD x .257'' ID x 13/16'' Long
Description:

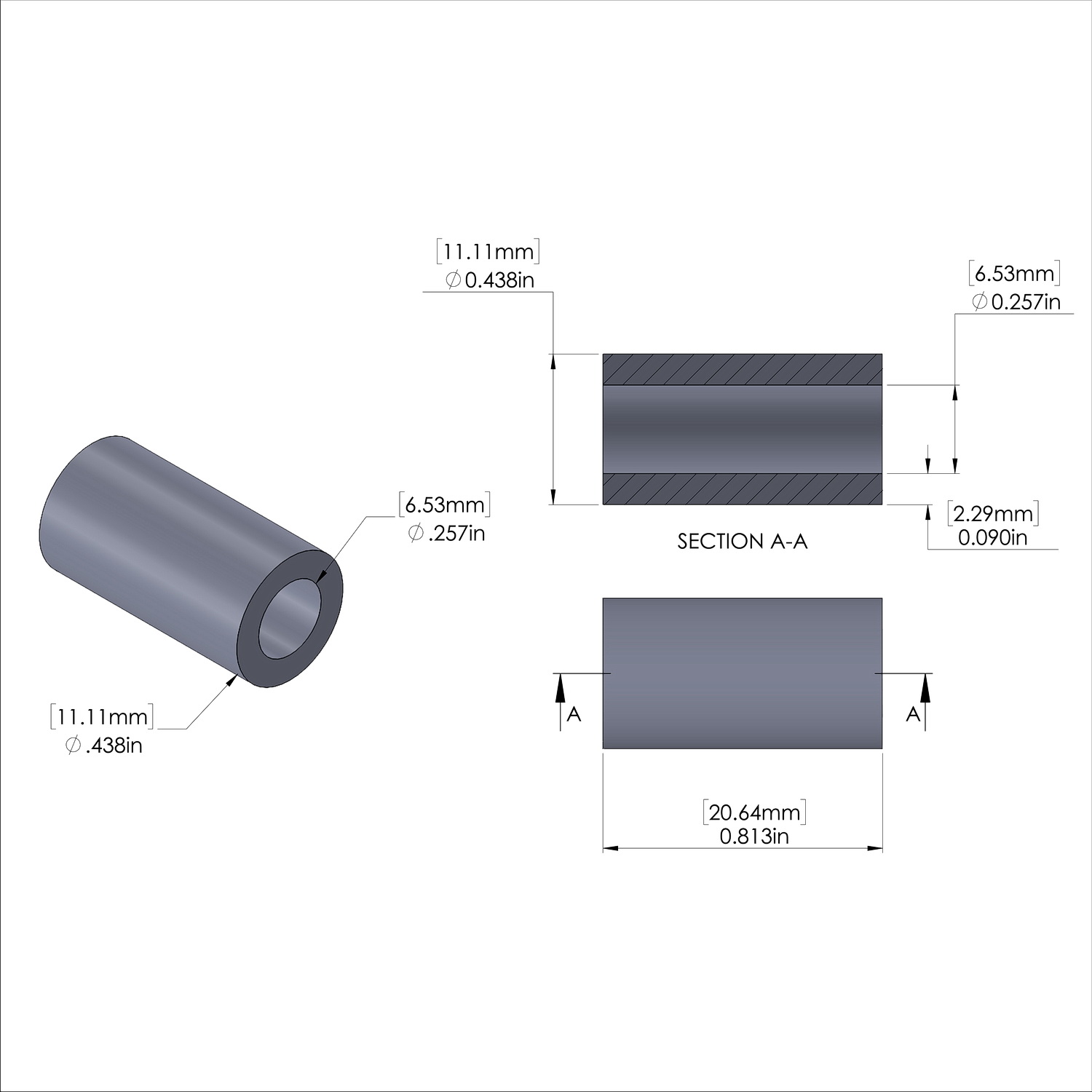

OD = 0.4355'' (7/16'') 11.1mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.257'' 6.53mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.813'' (13/16'') 20.638mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.09'' 2.29mmWeight = 11.5 lbs/M 5.22 kg/K
Title:
Aluminum Spacer 7/16'' OD x .257'' ID x 13/16'' Long
SKU: SP44-14-52
Sku
SP44-14-52
Inside Diameter
0.257''
Outside Diameter
7/16''
Material
Aluminum
Material Grade
6061-T6
Length
13/16''
Outer Diameter
7/16'' (11.1mm)
Screw/Bolt Size 1/4" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
