Aluminum Spacer 7/16'' OD x .257'' ID x 5/8'' Long

Aluminum Spacer 7/16'' OD x .257'' ID x 5/8'' Long
Title:
Aluminum Spacer 7/16'' OD x .257'' ID x 5/8'' Long
SKU: SP44-14-40
2-3 day lead time
Unit Price $1.12
Quantity Price Each (USD)
1-24
$1.12
25-249 $0.67
250-2499 $0.34
2500+ $0.11
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 7/16'' OD x .257'' ID x 5/8'' Long
SKU: SP44-14-40
Aluminum Spacer 7/16'' OD x .257'' ID x 5/8'' Long
Description:

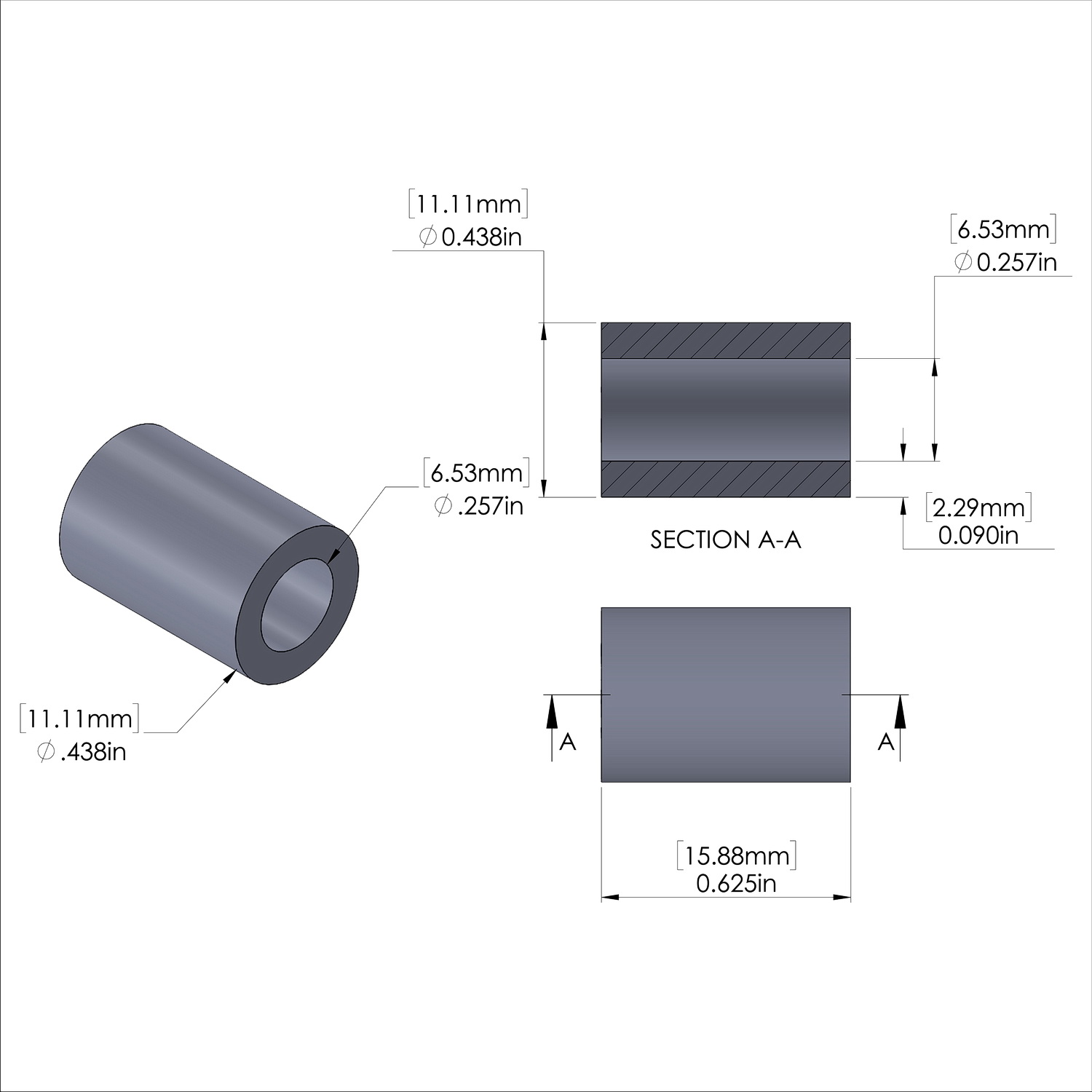

OD = 0.4375'' (7/16'') 11.1mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.257'' 6.53mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.625'' (5/8'') 15.875mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.09'' 2.29mmWeight = 8.85 lbs/M 4.02 kg/K
Title:
Aluminum Spacer 7/16'' OD x .257'' ID x 5/8'' Long
SKU: SP44-14-40
Sku
SP44-14-40
Inside Diameter
0.257''
Outside Diameter
7/16''
Material
Aluminum
Material Grade
6061-T6
Length
5/8''
Outer Diameter
7/16'' (11.1mm)
Screw/Bolt Size 1/4" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
