Aluminum Spacer 7/16'' OD x .319'' ID x 1 5/32

Aluminum Spacer 7/16'' OD x .319'' ID x 1 5/32, Plain Aluminum Finish

  1. Home
  2. Aluminum Spacer 7/16'' OD x .319'' ID x 1 5/32, Plain Aluminum Finish
Aluminum Spacer 7/16'' OD x .319'' ID x 1 5/32, Plain Aluminum Finish
Title:
Aluminum Spacer 7/16'' OD x .319'' ID x 1 5/32, Plain Aluminum Finish
SKU: SP44-16-74
2-3 day lead time
Unit Price$2.52
Quantity Price Each (USD)
1-24
$2.52
25-249 $1.76
250-2499 $1.51
2500+ $1.26
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 7/16'' OD x .319'' ID x 1 5/32, Plain Aluminum Finish
SKU: SP44-16-74
Aluminum Spacer 7/16'' OD x .319'' ID x 1 5/32, Plain Aluminum Finish
Description:

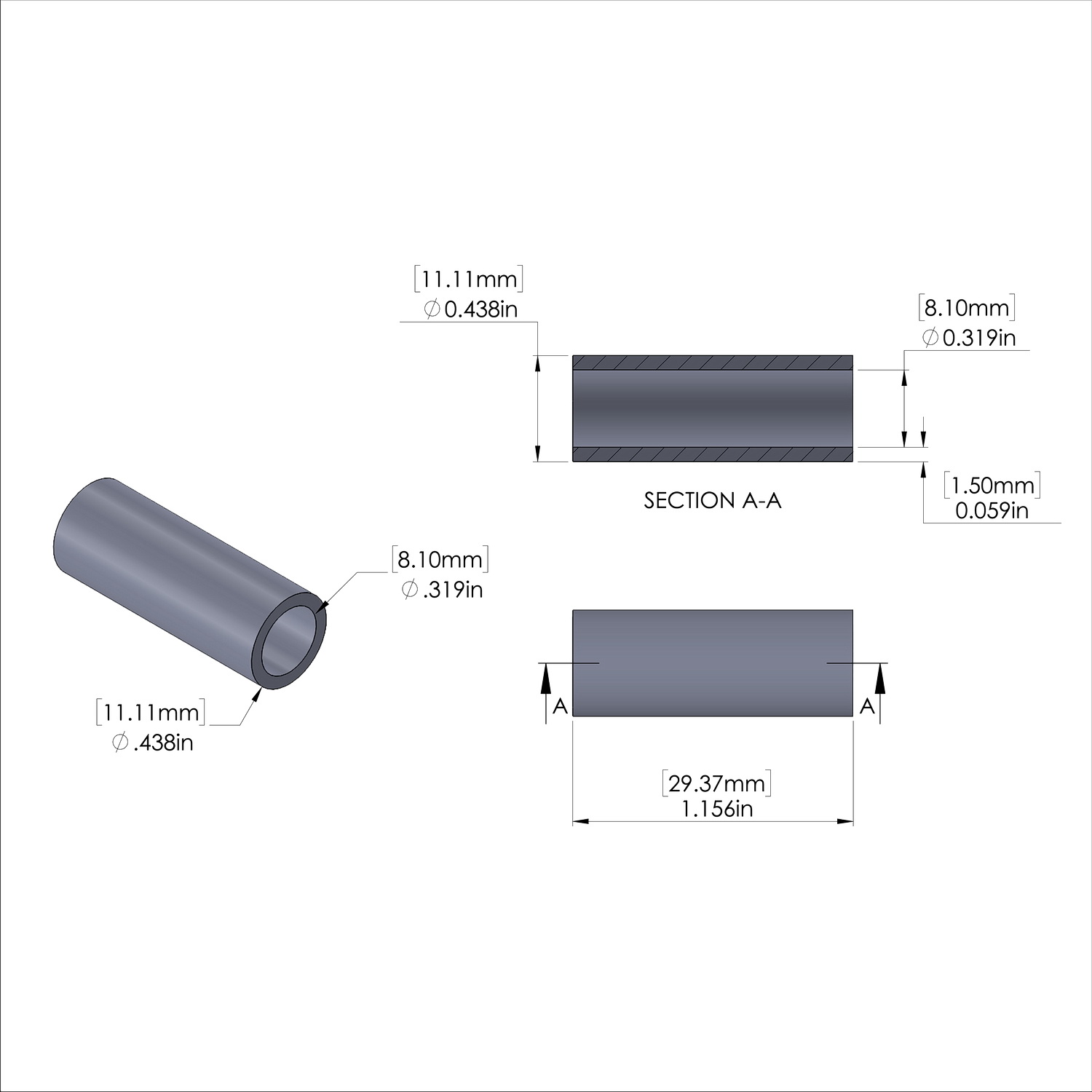

OD = 0.437'' (7/16'') 11.09mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.319'' 8.1mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 1.156'' (1-5/32'') 29.36mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.059'' 1.50mmWeight = 14.26 lbs/M 6.48 kg/K
Title:
Aluminum Spacer 7/16'' OD x .319'' ID x 1 5/32, Plain Aluminum Finish
SKU: SP44-16-74
Sku
SP44-16-74
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
0.319''
Outside Diameter
7/16''
Material Grade
6061-T6
Length
1-5/32''
Outer Diameter
7/16'' (11.1mm)
Screw/Bolt Size 5/16" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
