Aluminum Spacer 7/16'' OD x .319'' ID x 17/32'' Long

Aluminum Spacer 7/16'' OD x .319'' ID x 17/32'' Long
Title:
Aluminum Spacer 7/16'' OD x .319'' ID x 17/32'' Long
SKU: SP44-16-34
2-3 day lead time
Unit Price $1.32
Quantity Price Each (USD)
1-24
$1.32
25-249 $0.79
250-2499 $0.40
2500+ $0.13
Select Length:
Select Material:
Select Finish:
Title:
Aluminum Spacer 7/16'' OD x .319'' ID x 17/32'' Long
SKU: SP44-16-34
Aluminum Spacer 7/16'' OD x .319'' ID x 17/32'' Long
Description:

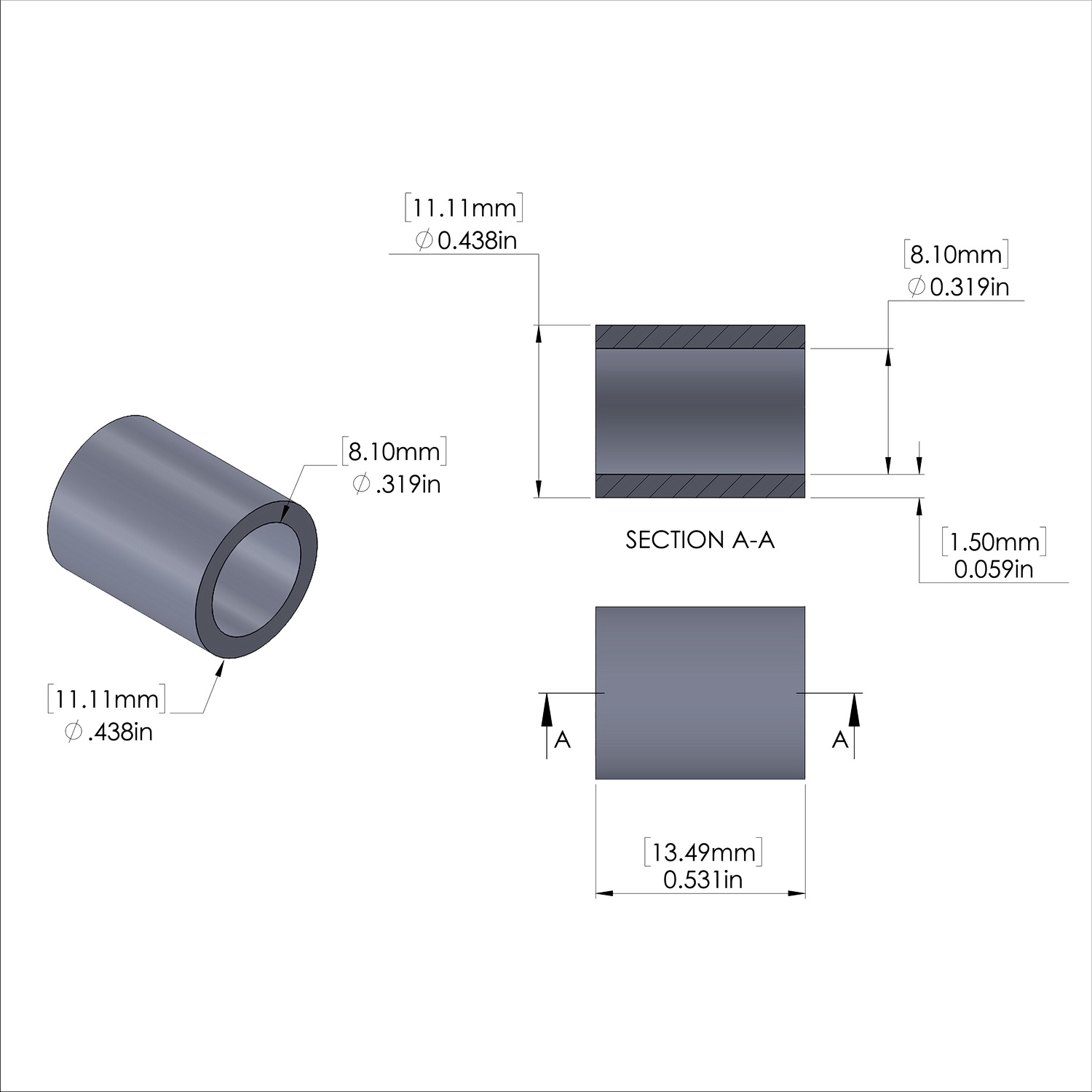

OD = 0.4375'' (7/16'') 11.1mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.319'' 8.1mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.531'' (17/32'') 13.487mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.059'' 1.51mmWeight = 6.06 lbs/M 2.75 kg/K
Title:
Aluminum Spacer 7/16'' OD x .319'' ID x 17/32'' Long
SKU: SP44-16-34
Sku
SP44-16-34
Inside Diameter
0.319''
Outside Diameter
7/16''
Material
Aluminum
Material Grade
6061-T6
Length
17/32''
Outer Diameter
7/16'' (11.1mm)
Screw/Bolt Size 5/16" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
