Aluminum Spacer 7/16'' OD x .319'' ID x 7/8'' Long

Aluminum Spacer 7/16'' OD x .319'' ID x 7/8'' Long
Title:
Aluminum Spacer 7/16'' OD x .319'' ID x 7/8'' Long
SKU: SP44-16-56
2-3 day lead time
Unit Price $1.28
Quantity Price Each (USD)
1-24
$1.28
25-249 $0.77
250-2499 $0.38
2500+ $0.13
Select Length:
Select Finish:
Title:
Aluminum Spacer 7/16'' OD x .319'' ID x 7/8'' Long
SKU: SP44-16-56
Aluminum Spacer 7/16'' OD x .319'' ID x 7/8'' Long
Description:

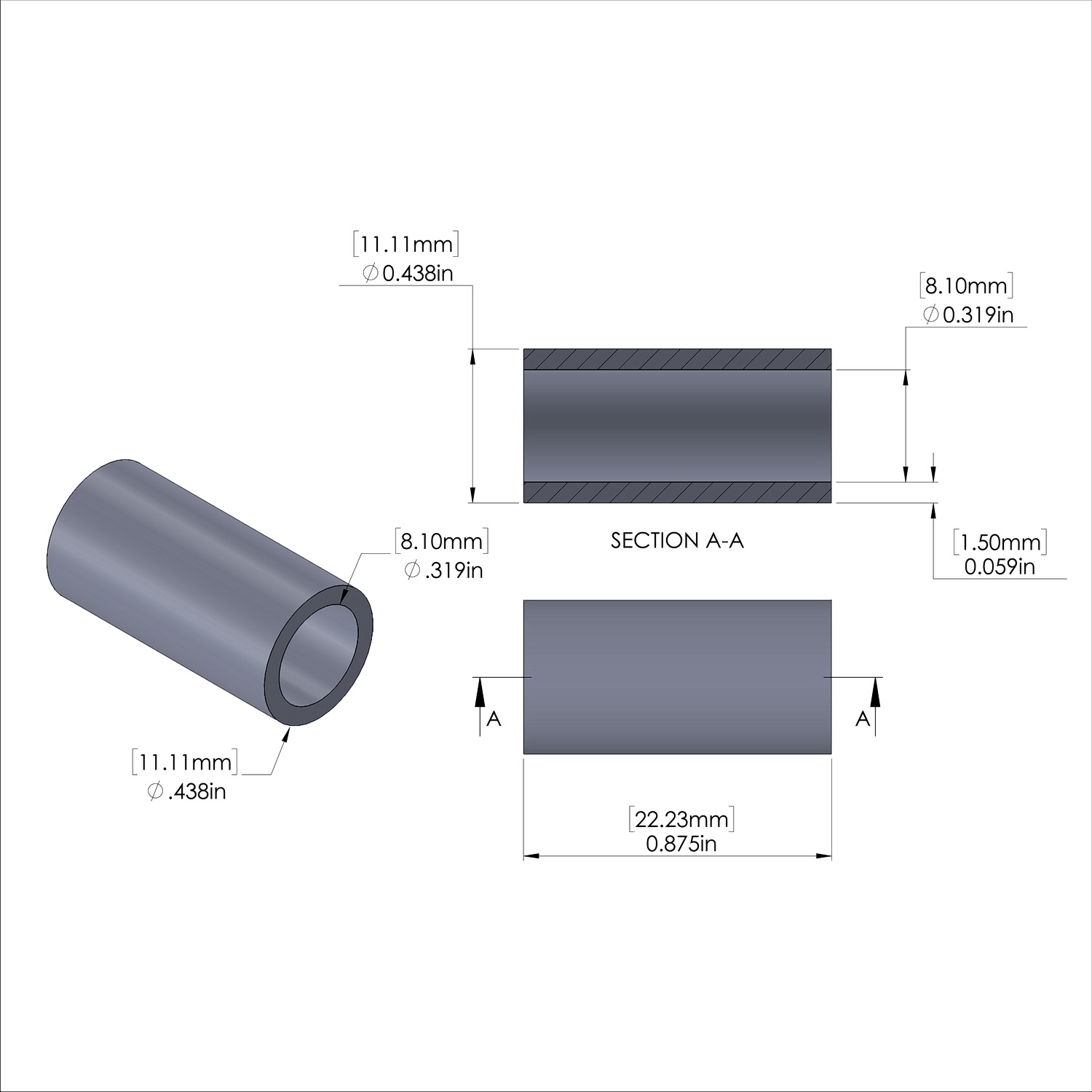

OD = 0.4375'' (7/16'') 11.1mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.319'' 8.1mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.875'' (7/8'') 22.225mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.059'' 1.51mmWeight = 9.98 lbs/M 4.53 kg/K
Title:
Aluminum Spacer 7/16'' OD x .319'' ID x 7/8'' Long
SKU: SP44-16-56
Sku
SP44-16-56
Inside Diameter
0.319''
Outside Diameter
7/16''
Material
Aluminum
Material Grade
6061-T6
Length
7/8''
Outer Diameter
7/16'' (11.1mm)
Screw/Bolt Size 5/16" Bolt
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
