Aluminum Spacer 8.1mm OD x 6.1mm ID x 4.77mm Long

Aluminum Spacer 8.1mm OD x 6.1mm ID x 4.77mm Long, Plain Aluminum Fini

  1. Home
  2. Aluminum Spacer 8.1mm OD x 6.1mm ID x 4.77mm Long, Plain Aluminum Finish
Aluminum Spacer 8.1mm OD x 6.1mm ID x 4.77mm Long, Plain Aluminum Finish
Title:
Aluminum Spacer 8.1mm OD x 6.1mm ID x 4.77mm Long, Plain Aluminum Finish
SKU: SPAS8-6-4.77
2-3 day lead time
Unit Price$0.56
Quantity Price Each (USD)
1-24
$0.56
25-249 $0.39
250-2499 $0.34
2500+ $0.28
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 8.1mm OD x 6.1mm ID x 4.77mm Long, Plain Aluminum Finish
SKU: SPAS8-6-4.77
Aluminum Spacer 8.1mm OD x 6.1mm ID x 4.77mm Long, Plain Aluminum Finish
Description:

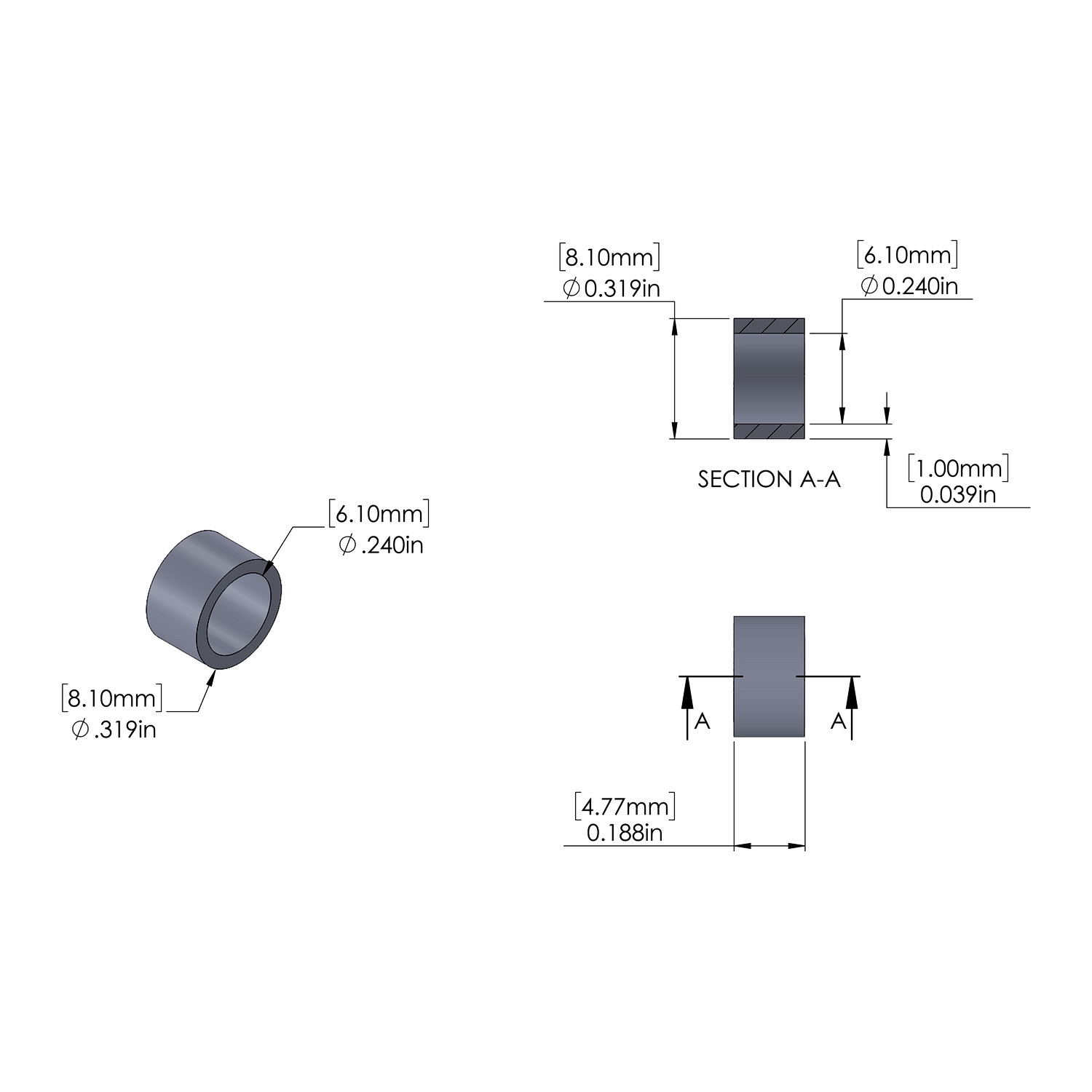

OD = 0.318'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.240'' 6.1mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.188''  4.77mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.039'' 0.99mmWeight = 1.16 lbs/M 0.527 kg/K
Title:
Aluminum Spacer 8.1mm OD x 6.1mm ID x 4.77mm Long, Plain Aluminum Finish
SKU: SPAS8-6-4.77
Sku
SPAS8-6-4.77
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
6.1mm
Outside Diameter
8.1mm
Material Grade
6061-T6
Length
4.77mm
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #12 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
