Aluminum Spacer 8mm OD x 5.1mm ID x 22.23mm Long

Aluminum Spacer 8mm OD x 5.1mm ID x 22.23mm Long, Plain Aluminum Finis

  1. Home
  2. Aluminum Spacer 8mm OD x 5.1mm ID x 22.23mm Long, Plain Aluminum Finish
Aluminum Spacer 8mm OD x 5.1mm ID x 22.23mm Long, Plain Aluminum Finish
Title:
Aluminum Spacer 8mm OD x 5.1mm ID x 22.23mm Long, Plain Aluminum Finish
SKU: SPAS8-5-22.23
2-3 day lead time
Unit Price$1.33
Quantity Price Each (USD)
1-24
$1.33
25-249 $0.93
250-2499 $0.80
2500+ $0.67
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 8mm OD x 5.1mm ID x 22.23mm Long, Plain Aluminum Finish
SKU: SPAS8-5-22.23
Aluminum Spacer 8mm OD x 5.1mm ID x 22.23mm Long, Plain Aluminum Finish
Description:

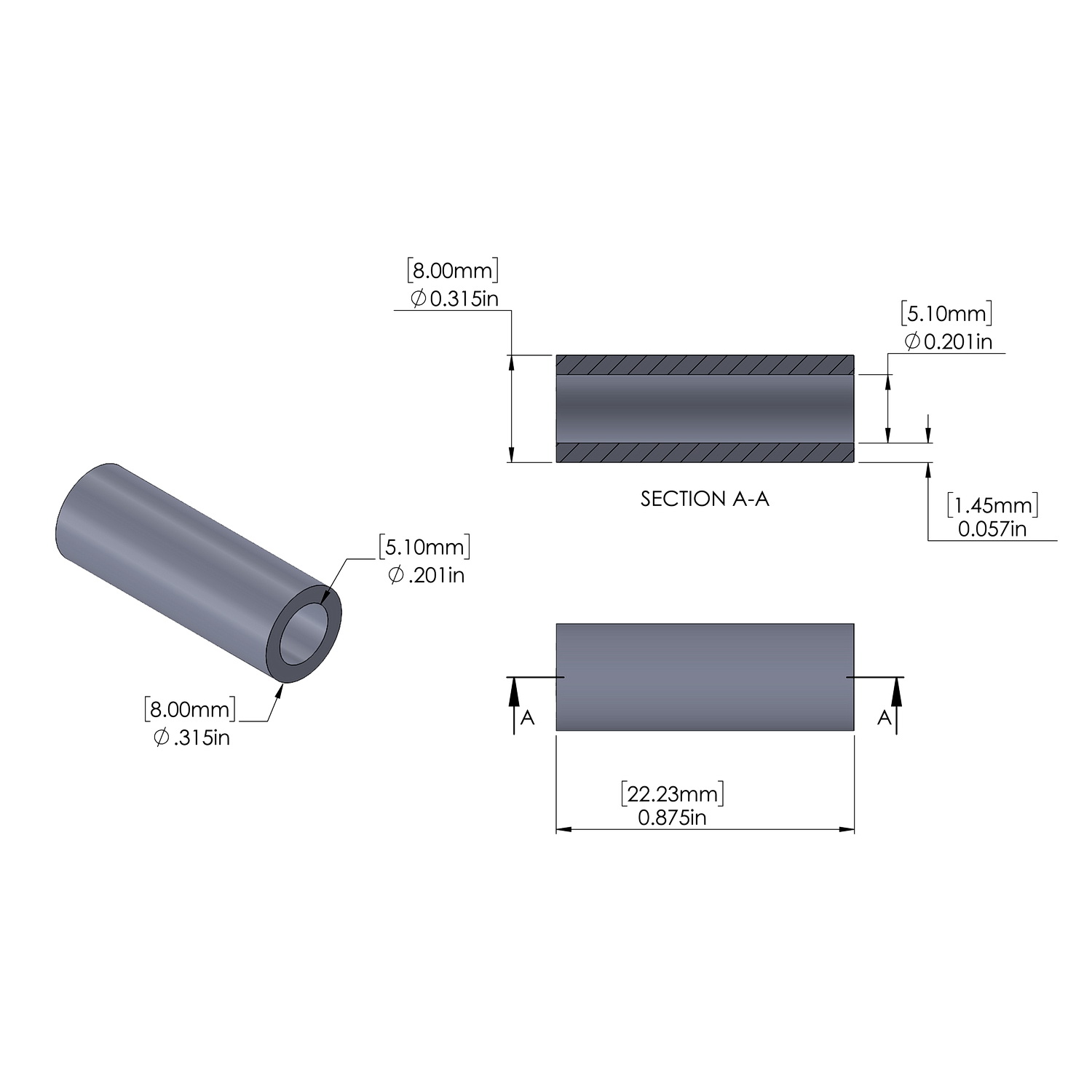

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.201'' 5.1mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.876'' 22.23mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.05'' 1.42mmWeight = 3.87 lbs/M 1.76 kg/K
Title:
Aluminum Spacer 8mm OD x 5.1mm ID x 22.23mm Long, Plain Aluminum Finish
SKU: SPAS8-5-22.23
Sku
SPAS8-5-22.23
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
5.1mm
Outside Diameter
8mm
Material Grade
6061-T6
Length
22.23mm
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
