Aluminum Spacer 8mm OD x 6.15mm ID x 18.3mm Long

Aluminum Spacer 8mm OD x 6.15mm ID x 18.3mm Long, Plain Aluminum Finis

  1. Home
  2. Aluminum Spacer 8mm OD x 6.15mm ID x 18.3mm Long, Plain Aluminum Finish
Aluminum Spacer 8mm OD x 6.15mm ID x 18.3mm Long, Plain Aluminum Finish
Title:
Aluminum Spacer 8mm OD x 6.15mm ID x 18.3mm Long, Plain Aluminum Finish
SKU: SPAS8-6-18.3
2-3 day lead time
Unit Price$1.91
Quantity Price Each (USD)
1-24
$1.91
25-249 $1.34
250-2499 $1.15
2500+ $0.96
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 8mm OD x 6.15mm ID x 18.3mm Long, Plain Aluminum Finish
SKU: SPAS8-6-18.3
Aluminum Spacer 8mm OD x 6.15mm ID x 18.3mm Long, Plain Aluminum Finish
Description:

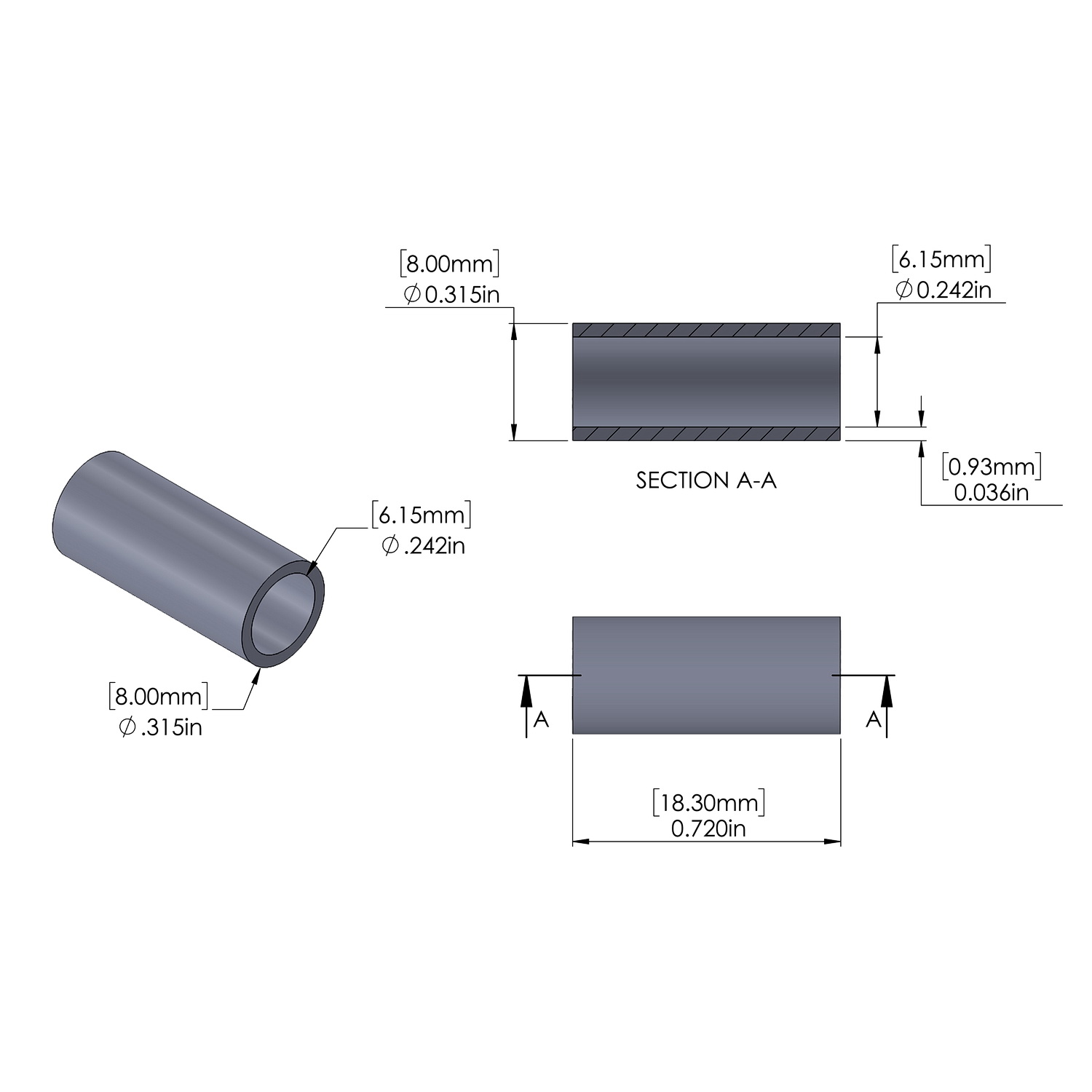

OD = 0.313'' (5/16'') 7.94mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.242'' 6.15mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.721''  18.3mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.036'' 0.89mmWeight = 1.32 lbs/M 0.65 kg/K
Title:
Aluminum Spacer 8mm OD x 6.15mm ID x 18.3mm Long, Plain Aluminum Finish
SKU: SPAS8-6-18.3
Sku
SPAS8-6-18.3
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
6.15mm
Outside Diameter
8mm
Material Grade
6061-T6
Length
18.3mm
Outer Diameter
5/16'' (8mm)
Screw/Bolt Size #12 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
