Aluminum Spacer 9.6mm OD x 5.1mm ID x 9.5mm Long

Aluminum Spacer 9.6mm OD x 5.1mm ID x 9.5mm Long, Plain Aluminum Finis

  1. Home
  2. Aluminum Spacer 9.6mm OD x 5.1mm ID x 9.5mm Long, Plain Aluminum Finish
Aluminum Spacer 9.6mm OD x 5.1mm ID x 9.5mm Long, Plain Aluminum Finish
Title:
Aluminum Spacer 9.6mm OD x 5.1mm ID x 9.5mm Long, Plain Aluminum Finish
SKU: SPAS9.5-5-9.5
2-3 day lead time
Unit Price$1.04
Quantity Price Each (USD)
1-24
$1.04
25-249 $0.73
250-2499 $0.62
2500+ $0.52
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 9.6mm OD x 5.1mm ID x 9.5mm Long, Plain Aluminum Finish
SKU: SPAS9.5-5-9.5
Aluminum Spacer 9.6mm OD x 5.1mm ID x 9.5mm Long, Plain Aluminum Finish
Description:

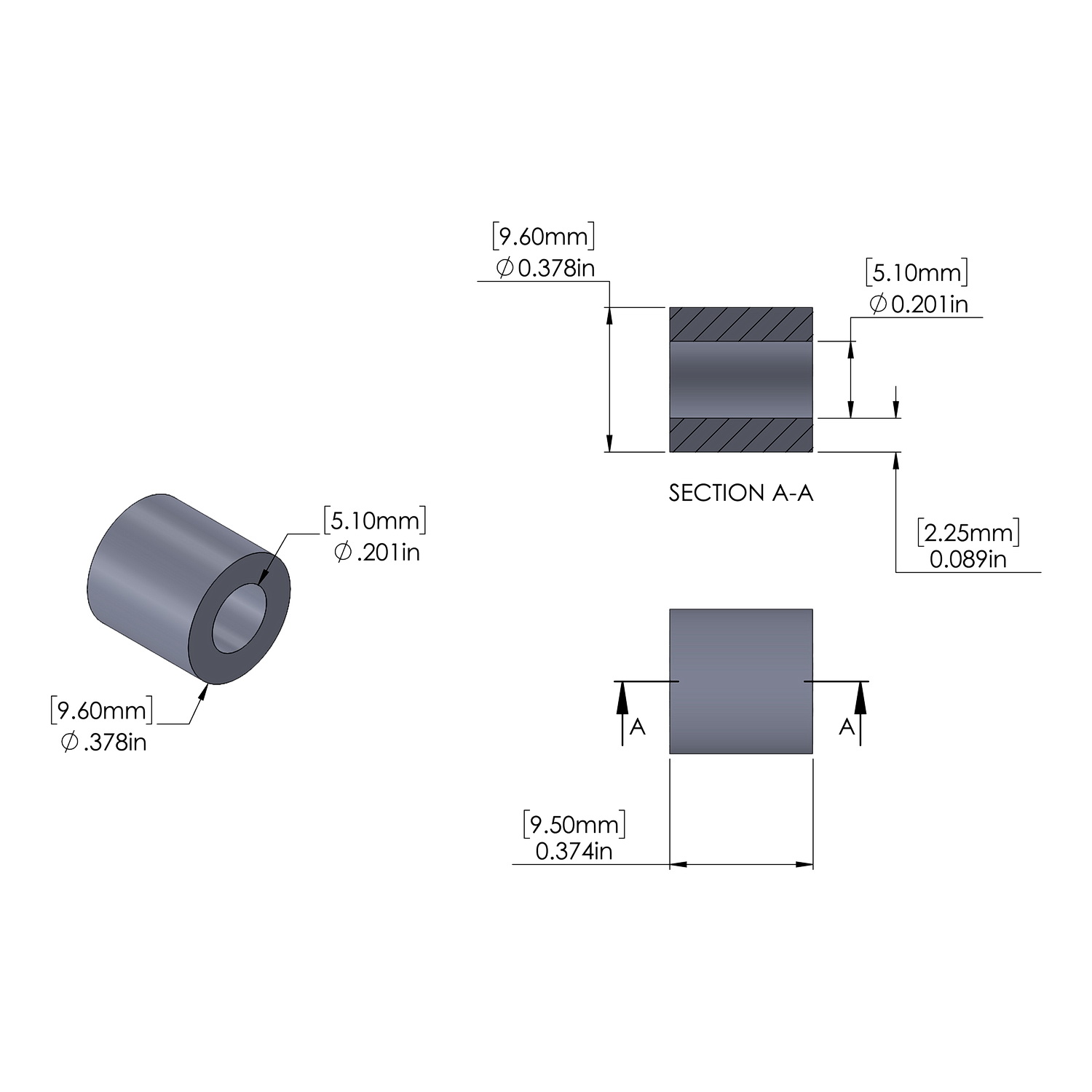

OD = 0.375'' (3/8'') 9.6mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.200'' 5.1mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.374'' 9.5mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.089'' 2.25mmWeight = 3 lbs/M 1.36 kg/K
Title:
Aluminum Spacer 9.6mm OD x 5.1mm ID x 9.5mm Long, Plain Aluminum Finish
SKU: SPAS9.5-5-9.5
Sku
SPAS9.5-5-9.5
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
5.1mm
Outside Diameter
9.6mm
Material Grade
6061-T6
Length
9.5mm
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size #10 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
