Aluminum Spacer 9.6mm OD x 6.15mm ID x 17.5mmmm Long

Aluminum Spacer 9.6mm OD x 6.15mm ID x 17.5mm Long, Plain Aluminum Fin

  1. Home
  2. Aluminum Spacer 9.6mm OD x 6.15mm ID x 17.5mm Long, Plain Aluminum Finish
Aluminum Spacer 9.6mm OD x 6.15mm ID x 17.5mm Long, Plain Aluminum Finish
Title:
Aluminum Spacer 9.6mm OD x 6.15mm ID x 17.5mm Long, Plain Aluminum Finish
SKU: SPAS9.5-6-17.5
2-3 day lead time
Unit Price$2.31
Quantity Price Each (USD)
1-24
$2.31
25-249 $1.62
250-2499 $1.39
2500+ $1.16
Select Length:
Select Material:
Select Finish:

Plain Aluminum

Title:
Aluminum Spacer 9.6mm OD x 6.15mm ID x 17.5mm Long, Plain Aluminum Finish
SKU: SPAS9.5-6-17.5
Aluminum Spacer 9.6mm OD x 6.15mm ID x 17.5mm Long, Plain Aluminum Finish
Description:

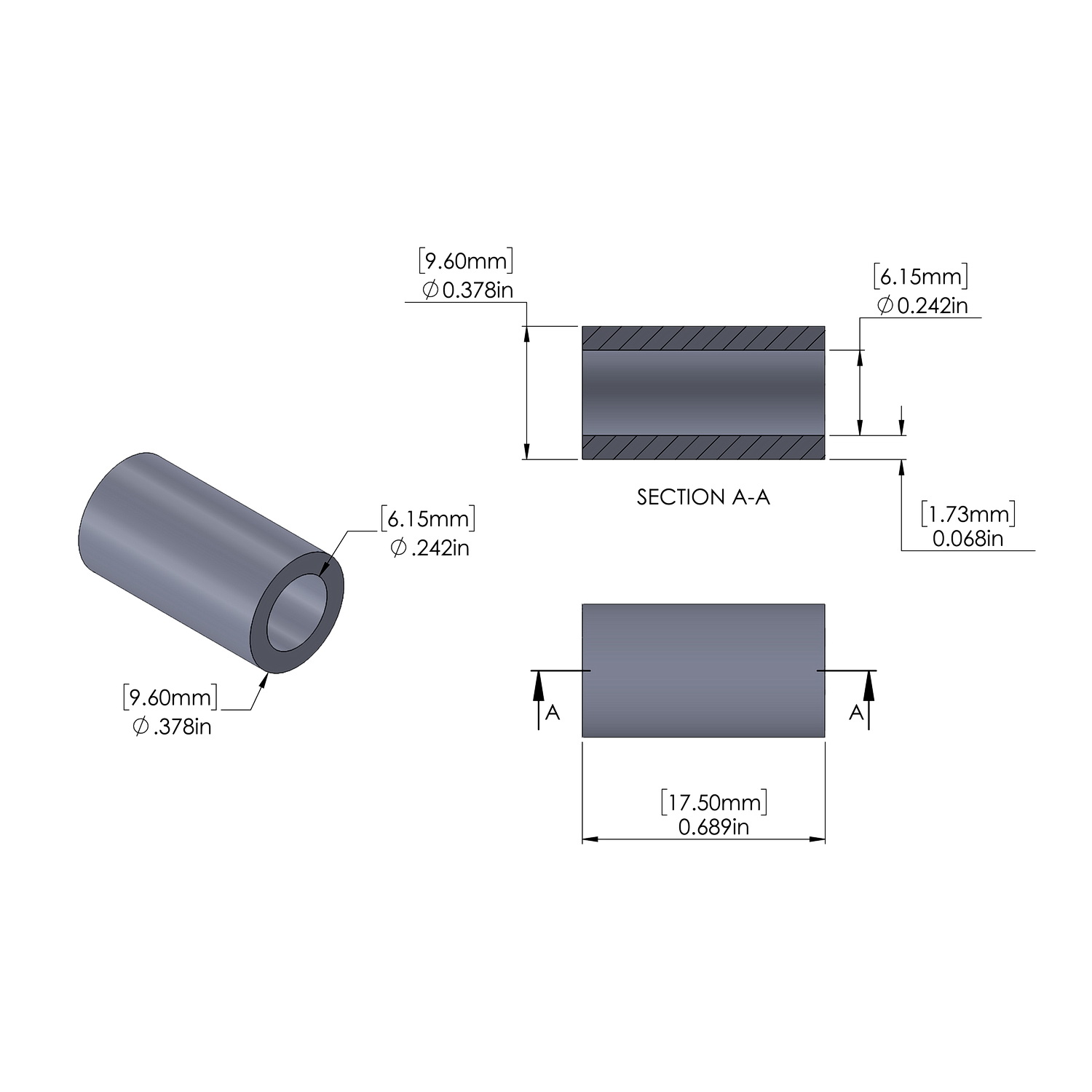

OD = 0.375'' (3/8'') 9.6mm   (Standard tolerance: +/-.005'', +/-.125mm)ID = 0.242'' 6.15mm   (Standard tolerance: +/-.003'', +/-.075mm)L = 0.689'' 17.5mm   (Standard tolerance: +/-.005'', +/-.125mm)Wall Thickness = 0.068'' 1.73mmWeight = 4.6 lbs/M 2.1 kg/K
Title:
Aluminum Spacer 9.6mm OD x 6.15mm ID x 17.5mm Long, Plain Aluminum Finish
SKU: SPAS9.5-6-17.5
Sku
SPAS9.5-6-17.5
Finish
Plain Aluminum
Material
Aluminum
Inside Diameter
6.15mm
Outside Diameter
9.6mm
Material Grade
6061-T6
Length
17.5mm
Outer Diameter
3/8'' (9.5mm)
Screw/Bolt Size #12 Screw
Outside Diameter Tolerance +/-.005'', +/-.125mm
Inside Diameter Tolerance +/-.003'', +/-.075mm
Length Standard Tolerance +/-.005'', +/-.125mm
