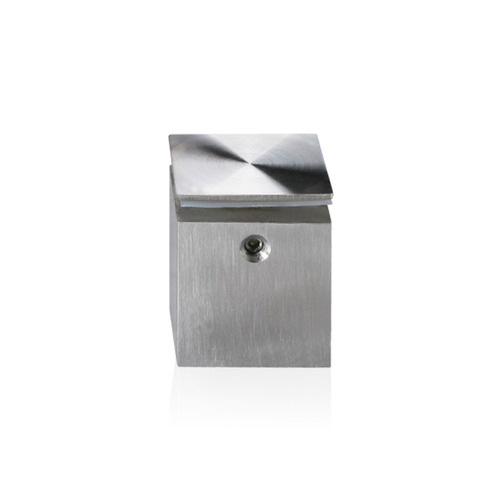

1-3/16'' x 1-3/16'' Stainless Steel Square Standof Satin Brushed Finish (for Indoor Use) [Required Material Hole Size: 3/8'']

Product 1

1-3/16'' x 1-3/16'' Stainless Steel Square Standof Satin Brushed Finish (for Indoor Use) [Required Material Hole Size: 3/8'']

SKU: CPFI30.30
Unit Price$10.68
Quantity Price Each (USD)
1-99 $10.68
100-501 $10.15
500+ $9.61
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Inside/Outside:

1-3/16'' x 1-3/16'' Stainless Steel Square Standof Satin Brushed Finish (for Indoor Use) [Required Material Hole Size: 3/8'']

SKU: CPFI30.30
1-3/16'' x 1-3/16'' Stainless Steel Square Standof Satin Brushed Finish (for Indoor Use) [Required Material Hole Size: 3/8'']
Description:

Our Stainless Steel Square Standoffs are perfect for all your indoor applications. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff. You can additionally check out all of our informational videos and how to's on YouTube utilizing the link in the table below!

1-3/16'' x 1-3/16'' Stainless Steel Square Standof Satin Brushed Finish (for Indoor Use) [Required Material Hole Size: 3/8'']

SKU: CPFI30.30
Sku CPFI30.30
Finish Satin Brushed
Inside/Outside Inside Use Only
Material Stainless Steel
Material Grade 201
Diameter 1-3/16''
Distance From Wall 1-3/16''
Cap Height 1/16''
Solid/Hollow Solid
Head Shape Flat
Length 1-3/16''
Shape Square
Washer Included Silicone Washers
Thickness Material Accepted Between (1/8'' and 3/4'')
Required Material Hole Size 3/8''
Maximum Thick. Material 3/4''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Loosen the set screw on your standoff, remove the cap, insert a screw inside the barrel and screw it into the anchor.
Now all you need to do is line up your material with the standoffs, insert the head of the standoff and tighten the set screw, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Screw Driver, Hand Drill, 2MM Hex Key for M4 set Screw
