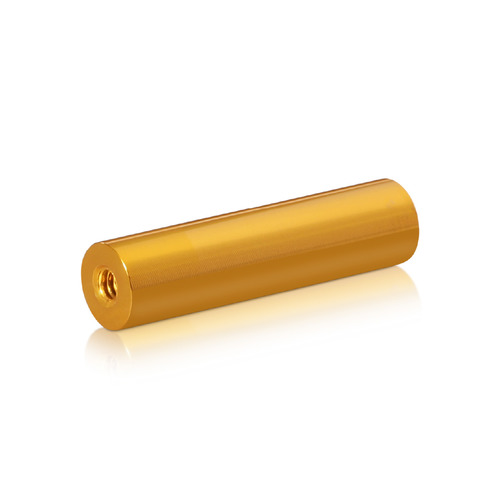

10-24 Threaded Barrels Diameter: 1/2'', Length: 2'', Gold Anodized

Product 1

10-24 Threaded Barrels Diameter: 1/2'', Length: 2'', Gold Anodized [Required Material Hole Size: 7/32'' ]

SKU: S050-200G

Select Your Preferences

Material:
Diameter:
Distance From Wall:
Thread:
Finish:
Unit Price$4.40
Quantity Price Each (USD)
1-99 $4.40
100-499 $4.18
500+ $3.96
1000+ Contact Us

Click Here To View Similar Products In Our Catalog

10-24 Threaded Barrels Diameter: 1/2'', Length: 2'', Gold Anodized [Required Material Hole Size: 7/32'' ]

SKU: S050-200G
10-24 Threaded Barrels Diameter: 1/2'', Length: 2'', Gold Anodized [Required Material Hole Size: 7/32'' ]
Description:
Our Aluminum Barrels are perfect for all your indoor and outdoor applications. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! Customize your project with multiple layers! Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.

10-24 Threaded Barrels Diameter: 1/2'', Length: 2'', Gold Anodized [Required Material Hole Size: 7/32'' ]

SKU: S050-200G
Sku S050-200G
Finish Gold Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Diameter 1/2''
Solid/Hollow Solid
Shape Cylinder
Washer Not Included
Thread Type Imperial
Thread 10-24
Thread Depth 1'' Both Ends
Screw Size for Installation 10-24
Installation

<p>The installation process for this line is quite simple.<br />First, mark on your surface the area for your holes.<br />Next you will want to drill a hole (according to your anchor type) and then insert your anchor.<br />Now, take your combination screw and insert that into the anchor.<br />After that, take your barrel and thread it onto your thread portion of your combination screw.<br />Now you will want to insert your stud about halfway into your barrel.<br />Place your material over the stud, then screw on your cap and you are done!<br />Step back and admire your work!</p>
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z, ANC5ZS
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware Anchor for concrete or drywall and 10-24 Studs / Combination Screws
Tools Required Hand Drill, 3/32'' Allen Key, Bit Driver (#400.424)
