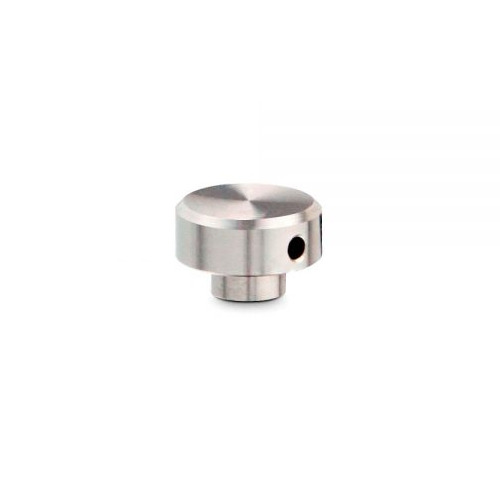

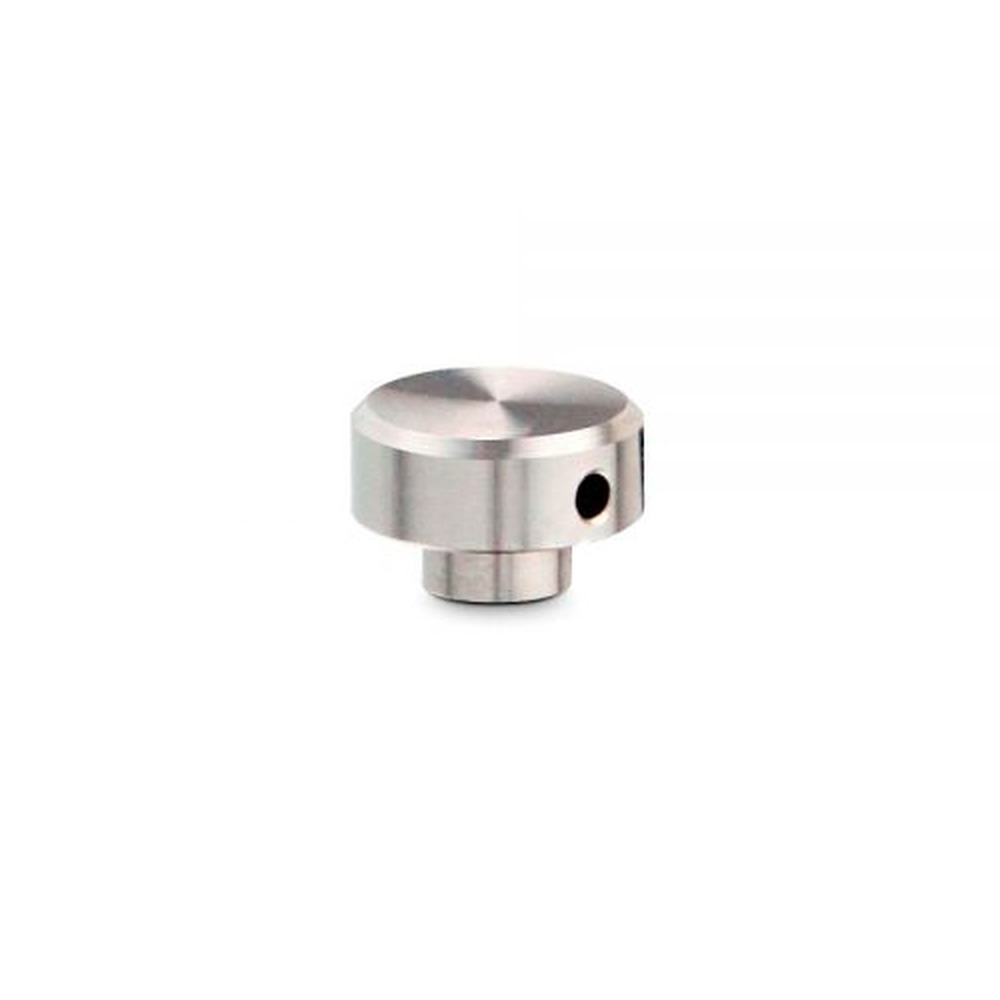

1/4-20 Threaded Tamper Proof Caps Diameter: 3/4", Height: 3/16", Brushed Satin Stainless Steel 304, With Stem Diameter: 5/16", [Required Material Hole Size: 5/16'']

Product 1

1/4-20 Threaded Tamper Proof Caps Diameter: 3/4", Height: 3/16", Brushed Satin Stainless Steel 304, With Stem Diameter: 5/16", [Required Material Hole Size: 5/16'']

SKU: SSCAP2R

Select Your Preferences

Diameter:
Thread:
Unit Price$3.65
Quantity Price Each (USD)
1-99 $3.65
100-499 $3.47
500+ $3.29
1000+ Contact Us


1/4-20 Threaded Tamper Proof Caps Diameter: 3/4", Height: 3/16", Brushed Satin Stainless Steel 304, With Stem Diameter: 5/16", [Required Material Hole Size: 5/16'']

SKU: SSCAP2R
1/4-20 Threaded Tamper Proof Caps Diameter: 3/4
Description:
These 304 Stainless Steel Caps give you added protection against vandalism and theft. Stainless steel security caps feature a small hole on the edge and are secured using an 3/32" pin Or 3/32" Allen Wrench.

1/4-20 Threaded Tamper Proof Caps Diameter: 3/4", Height: 3/16", Brushed Satin Stainless Steel 304, With Stem Diameter: 5/16", [Required Material Hole Size: 5/16'']

SKU: SSCAP2R
Sku SSCAP2R
Finish Satin Brushed
Inside/Outside Inside Or Outside Use
Material Stainless Steel
Material Grade 304
Diameter 3/4''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Shape Stem
Washer N/A
Thread Type UNC
Thread 1/4-20
Installation

The installation process for this line is quite simple.
First, mark on your surface the area for your holes.
Next you will want to drill a hole (according to your anchor type) and then insert your anchor.
Now, take your combination screw and insert that into the anchor.
After that, take your barrel and thread it onto your thread portion of your combination screw.
Now you will want to insert your stud about halfway into your barrel.
Place your material over the stud, then screw on your cap and you are done!
Step back and admire your work!
Installation Hardware Anchor for concrete or drywall and 1/4-20 Studs, #8 Combination Screws
Tools Required Hand Drill, 3/32" Allen Wrench.
