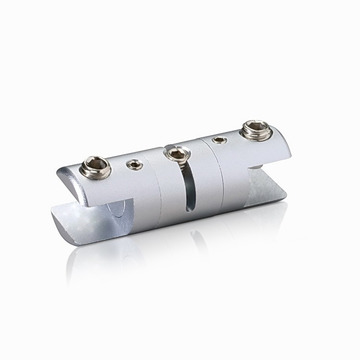

Pivoting Support - Up to 5/16'' - Double Sided - Side Clamp - Aluminum - For Cable
Title:
Pivoting Support - Up to 5/16'' - Double Sided - Side Clamp - Aluminum - For Cable
SKU: ACA1622
Unit Price$7.46
Quantity Price Each (USD)
1-99 $7.46
100-499 $6.71
500+ $5.97
1000+ Contact Us
Select Material:
Select Hang:
Select Maximum Thickness:
Title:
Pivoting Support - Up to 5/16'' - Double Sided - Side Clamp - Aluminum - For Cable
SKU: ACA1622
Pivoting Support - Up to 5/16'' - Double Sided - Side Clamp - Aluminum - For Cable
Description:
Our Stainless Steel Cable & Rod supports are perfect for all your indoor applications. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular support.
Title:
Pivoting Support - Up to 5/16'' - Double Sided - Side Clamp - Aluminum - For Cable
SKU: ACA1622
Sku
ACA1622
Finish
Clear Anodized
Inside/Outside
Inside Or Outside Use
Material
Aluminum
Diameter
5/8''
Distance From Wall
1/2''
Cable Diameter
1/16''
Length
1-7/8''
Rated Strength
55 lbs (25 Kg) per Steel Cable (When Properly Installed)
Application
On Cable
Thickness Material Accepted Between (1/8'' and 5/16'')
Maximum Thick. Material 5/16''
Installation

The installation process is very easy!
First, mark where you will be hanging your wall, ceiling, or floor mounts.
Then, drill any necessary holes and install your anchors.

The cable will be threaded into both the Cable Tensioner and the Ceiling mount and then tightened down.

Install the bottom components first, then slide your Cable Supports onto your cable before installing your upper components.

When you go to install your upper components, determine if you have any excess cable and carefully cut away the excess.
If you are installing a Wall Mounted System, you will install the Vertical Assembly Arm(s) and then attach the Cable Tensioner and/or Ceiling Mount into the Vertical Assembly arm.
All that's left is to hang your material, tighten the set screws, and enjoy your beautiful display!
Installation Hardware None Needed
Tools Required M3 Hex key, M5 Hex key, M6 Hex key
