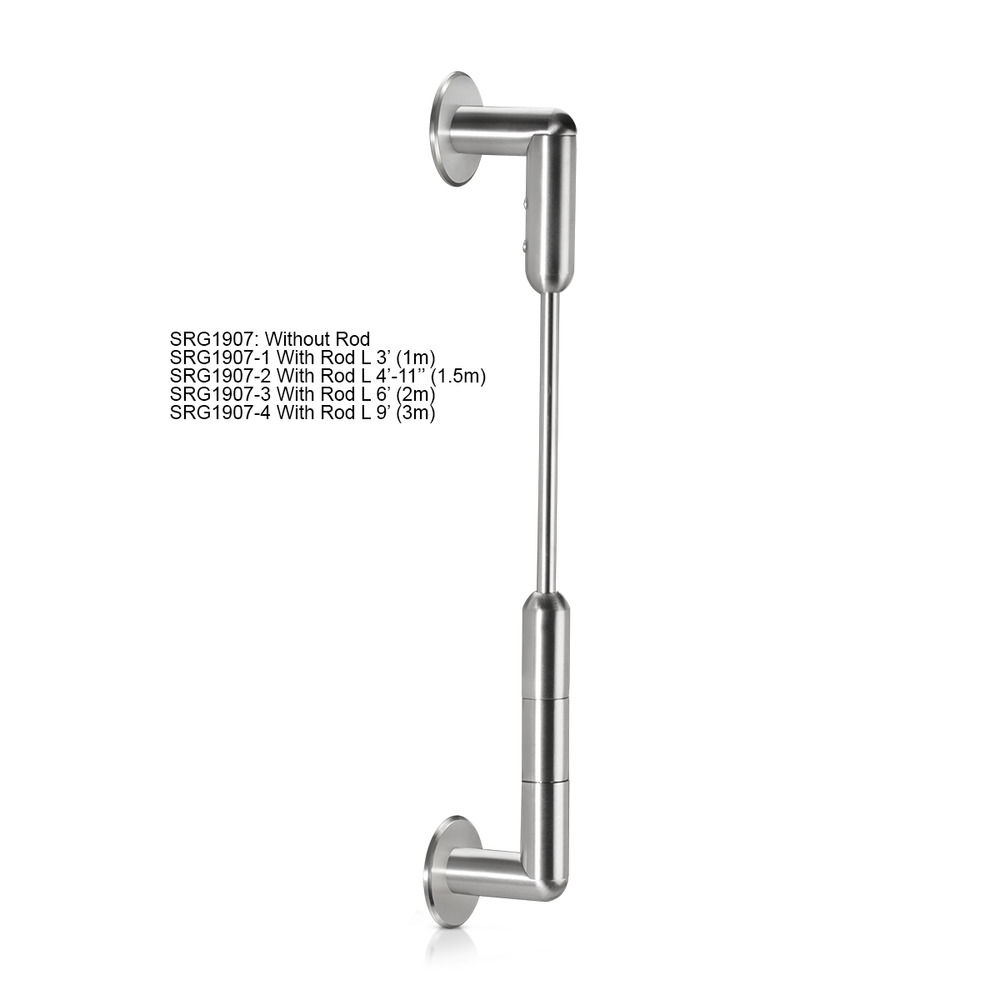

Wall to Wall 1/4'' Diameter Rod Kit - 6' - Stainless Steel

Product 1

Wall to Wall 1/4'' Diameter Rod Kit - 6' - Stainless Steel

SKU: SRG1907-3
Unit Price$34.57
Quantity Price Each (USD)
1-99 $34.57
100-501 $32.84
500+ $31.11
1000+ Contact Us

Select Length (W/out Rod):

Wall to Wall 1/4'' Diameter Rod Kit - 6' - Stainless Steel

SKU: SRG1907-3
Wall to Wall 1/4'' Diameter Rod Kit - 6' - Stainless Steel
Description:

Our Stainless Steel Wall to Wall Rod Display Kit makes setting up your perfect system that much easier.

Our six foot six inch wall to wall kit constructed of high quality stainless steel, paired with your selection of Rod Supports will amaze you!

The elegant finishes that we carry will give your display rod system a unique look that will make it stand out like no other.

Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time!

If you look below you will notice technical descriptions about this particular package.

Wall to Wall 1/4'' Diameter Rod Kit - 6' - Stainless Steel

SKU: SRG1907-3
Sku SRG1907-3
Finish Satin Brushed
Inside/Outside Inside Use Only
Material Stainless Steel
Diameter 3/4''
Distance From Wall 2-1/4''
Length 72''
Washer Not Included
Application Wall to Wall
Rod Diameter 1/4''
Screw Size for Installation #8
Installation

The installation process is very easy!
First, mark where you will be hanging your wall, ceiling, or floor mounts.
Then, drill any necessary holes and install your anchors.

The rod will be installed into both the Tensioner and the Ceiling mount and then tightened down.

Before installing anything, slide your Rod Supports onto your rod, then install the bottom components, followed by your rod and your upper components.

If you are installing a Wall Mounted System, you will install the Vertical Assembly Arm(s) and then attach the Rod Tensioner and/or Ceiling Mount into the Vertical Assembly arm.
All that's left is to hang your material, tighten the set screws, and enjoy your beautiful display!

Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Installation Hardware #8 Screw & Anchor
Tools Required M3 Hex Key, M4 Hex Key, M5 Hex Key, Screwdriver
