Wire Suspension Kit for Signage – Includes 10' x 1/16'' Zinc Wire Cable, Drop Ceilling Mounts, and Grippers for 1/4'' Material, Aluminum Champagne Anodized Finish

Product 1

Wire Suspension Kit for Signage – Includes 10' x 1/16'' Zinc Wire Cable, Drop Ceilling Mounts, and Grippers for 1/4'' Material, Aluminum Champagne Anodized Finish

SKU: TCLAMP1-250MB
Unit Price$31.80

Click Here To View Similar Products In Our Catalog

Wire Suspension Kit for Signage – Includes 10' x 1/16'' Zinc Wire Cable, Drop Ceilling Mounts, and Grippers for 1/4'' Material, Aluminum Champagne Anodized Finish

SKU: TCLAMP1-250MB
Wire Suspension Kit for Signage – Includes 10' x 1/16'' Zinc Wire Cable, Drop Ceilling Mounts, and Grippers for 1/4'' Material, Aluminum Champagne Anodized Finish
Description:

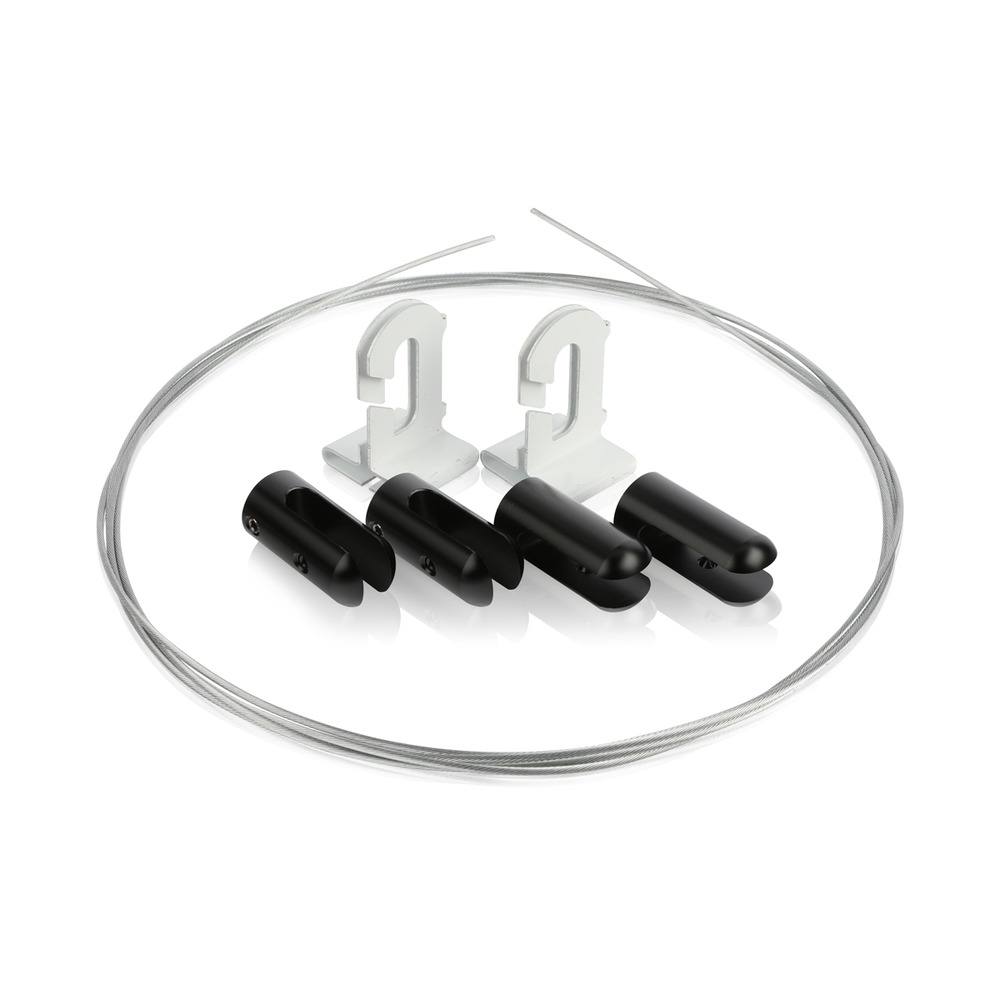

Wire Kits are the perfect solution for starting wire suspension in your signage and display projects. These kits include all the necessary hardware to mount 1/4″ thick materials from a drop ceiling. Each kit comes with acoustic panel t-track clips, a 10’ span of 3/64” wire, and panel grippers to securely hold your materials in place. (Signage panels are not included.) Thos Kit Includes: (2) TCLAMP1 Drop Ceiling Clips (4) 120.125* Grippers (1) 10’ long 1/16” WS-Wire Ideal for quick and secure mounting, these kits provide everything you need for efficient installation.

Wire Suspension Kit for Signage – Includes 10' x 1/16'' Zinc Wire Cable, Drop Ceilling Mounts, and Grippers for 1/4'' Material, Aluminum Champagne Anodized Finish

SKU: TCLAMP1-250MB
Sku TCLAMP1-250MB
Finish Champagne Anodized
Inside/Outside Inside Use Only
Material Steel Aluminum
Diameter 5/8''
Cable Diameter 1/16''
Rated Strength 55 lbs (25 Kg) per Steel Cable (When Properly Installed)
Application Ceiling Suspended
Thickness Material Accepted Between (1/4'' and 1/4'')
Thread 10-24
Maximum Thick. Material 1/4''
Cross Reference WSK-6
Installation

Insert and slide the two parts of the TCLAMP1 onto the T-bar drop ceiling. Unscrew the set screw from the fork, slide the cable inside, and tighten the set screw to secure the cable in place on the TCLAMP1. Cut the cable to the desired length. Unscrew the set screw from the other fork, slide your material into place, and tighten the set screw to secure it. Voilà! Your setup is complete!
Tools Required Cable Cutter, Allen Key 3/32''
