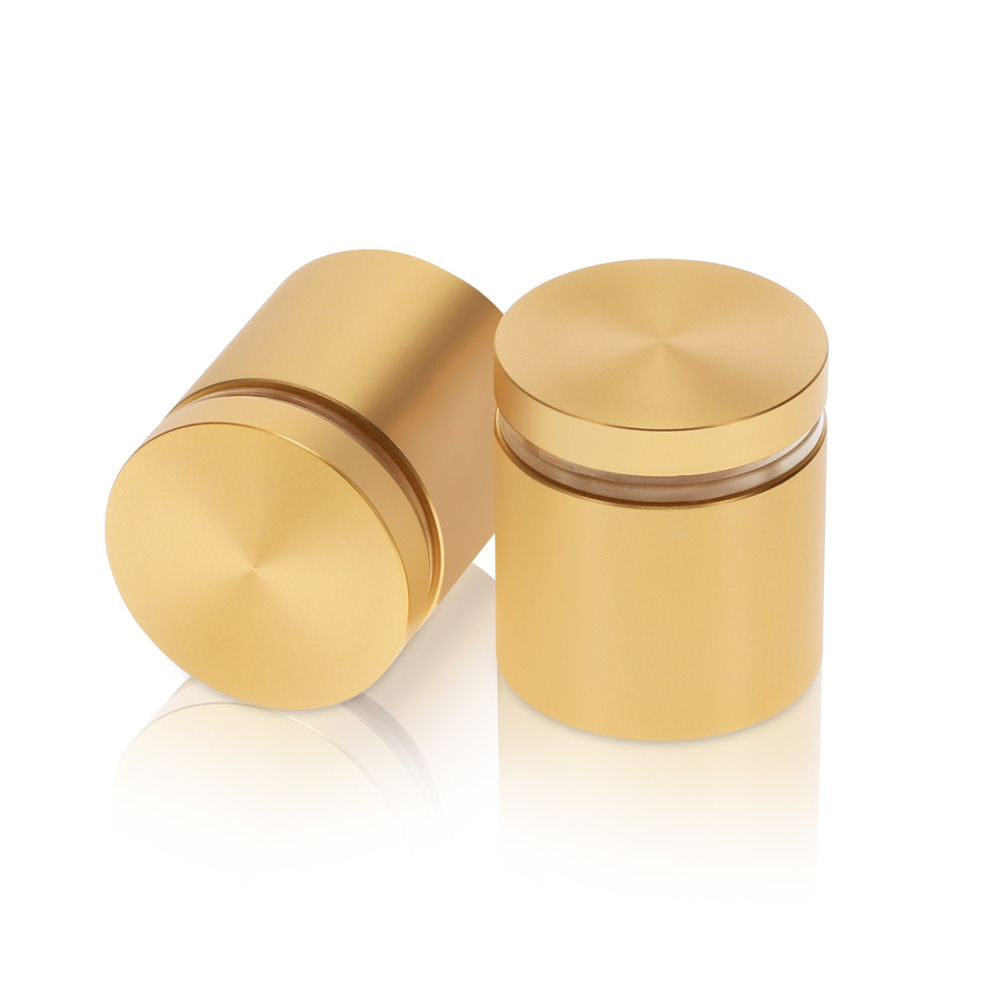

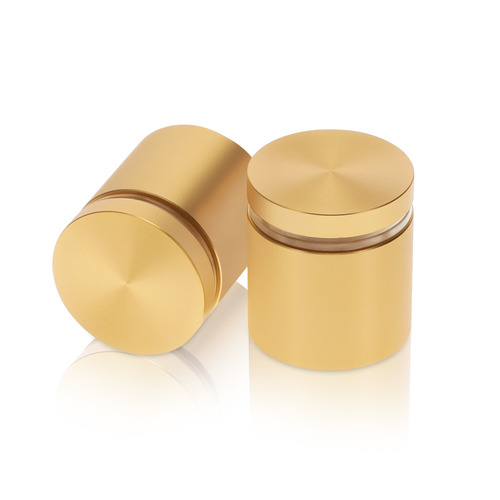

1-1/4'' Diameter X 1'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

Product 1

1-1/4'' Diameter X 1'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH30-30BR
Unit Price$5.55
Quantity Price Each (USD)
1-99 $5.55
100-501 $5.27
500+ $5.00
1000+ Contact Us

Click Here To View Similar Products In Our Catalog
Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

1-1/4'' Diameter X 1'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH30-30BR
1-1/4'' Diameter X 1'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:

We are happy to provide the advanced effective line of Flat Head, Reverse Threading, Tamper Proof standoffs. Our 1'' Standoff, 1 1/4'' Diameter, Clear Anodized standoffs are developed as well as made to the highest specifications; as well as supply the following outstanding attributes that will defiantly enable you to produce one of the most reliable and also attractive displays within your spending plan. These brand-new tamper proof, flat head standoffs are engineered with a reverse thread for interior and also exterior use. MBSStandoffs offer a substantial variety of sizes & dimensions to meet any type of need . In addition, there is an exceptional option of finishes to satisfy any of your imaginative expectations.

1-1/4'' Diameter X 1'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH30-30BR
Sku FAH30-30BR
Finish Champagne Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 1-1/4''
Distance From Wall 1''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 1''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
