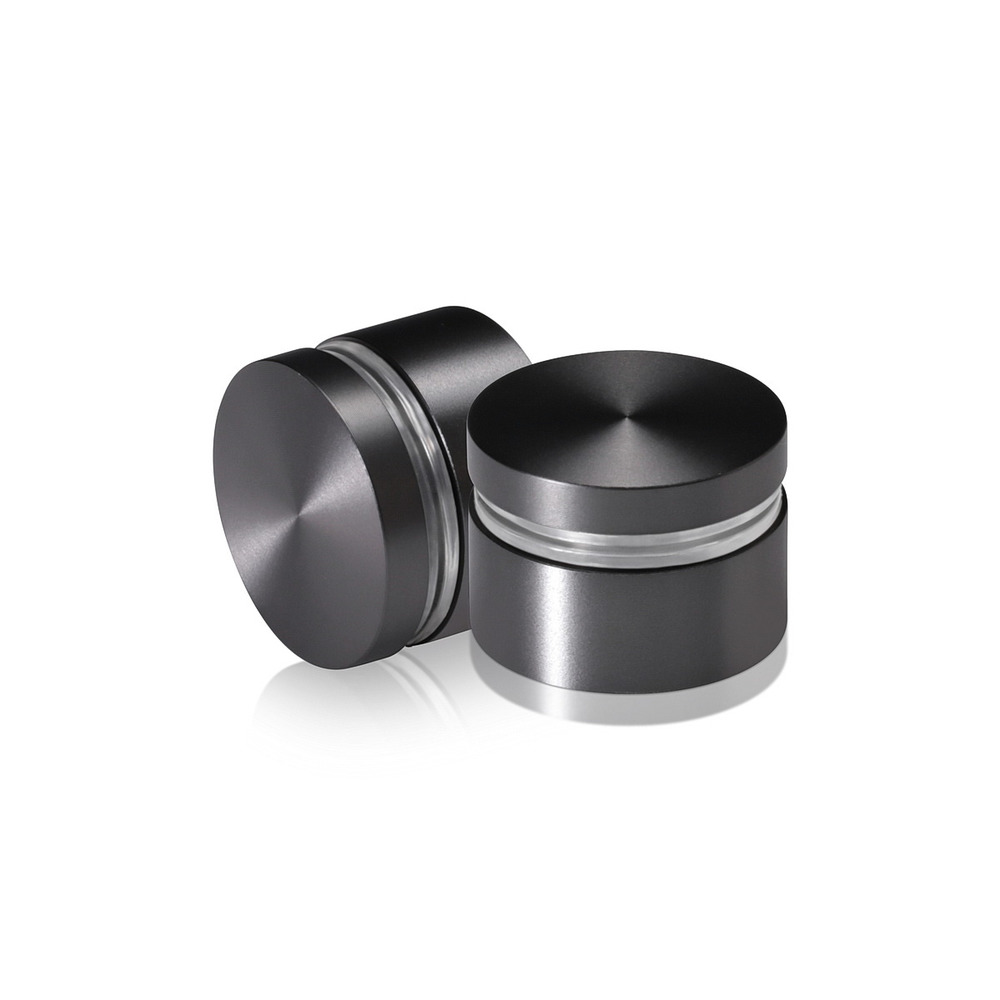

1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff

Product 1

1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH30-12T
Unit Price$4.96
Quantity Price Each (USD)
1-99 $4.96
100-501 $4.71
500+ $4.46
1000+ Contact Us

Click Here To View Similar Products In Our Catalog
Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH30-12T
1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
The all new 1/2'' Standoff, 1 1/4'' Diameter Black Anodized standoffs are established as well as made to the highest standards; as well as supply the adhering to phenomenal qualities that will allow you to produce one of the most efficient as well as eye-catching displays within your budget plan. These brand-new flat head, tamper proof standoffs are designed with a reverse thread for indoor and also outside use. MBS-Standoffs supply a comprehensive range of sizes & dimensions to fulfill any sort of requirement . Furthermore, there is a superb selection of finishes to fulfill any one of your imaginative assumptions.

1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH30-12T
Sku FAH30-12T
Finish Titanium
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 1-1/4''
Distance From Wall 1/2''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 1/2''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
