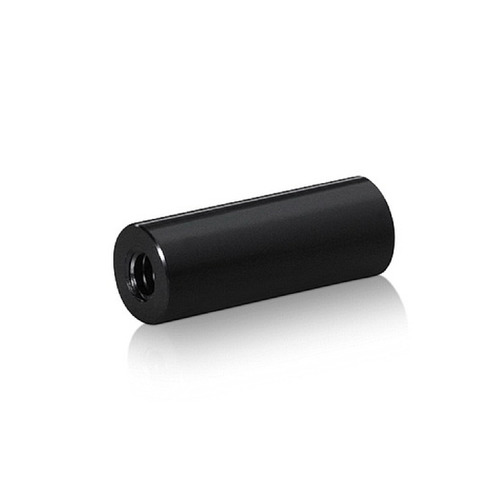

10-24 Threaded Barrels Diameter: 3/8'', Length: 1'', Black Anodized Aluminum

10-24 Threaded Barrels Diameter: 3/8'', Length: 1'', Black Anodized Al

  1. Home
  2. 10-24 Threaded Barrels Diameter: 3/8'', Length: 1'', Black Anodized Aluminum [Required Material Hole Size: 7/32'' ]
10-24 Threaded Barrels Diameter: 3/8'', Length: 1'', Black Anodized Aluminum [Required Material Hole Size: 7/32'' ]
Title:
10-24 Threaded Barrels Diameter: 3/8'', Length: 1'', Black Anodized Aluminum [Required Material Hole Size: 7/32'' ]
SKU: S038-100B
Unit Price$2.96
Quantity Price Each (USD)
1-99 $2.96
100-499 $2.66
500+ $2.37
1000+ Contact Us
Select Material:
Select Diameter:
Select Distance From Wall:
Select Thread:
Select Finish:

Clear Anodized

Black Anodized

Gold Anodized

Title:
10-24 Threaded Barrels Diameter: 3/8'', Length: 1'', Black Anodized Aluminum [Required Material Hole Size: 7/32'' ]
SKU: S038-100B
10-24 Threaded Barrels Diameter: 3/8'', Length: 1'', Black Anodized Aluminum [Required Material Hole Size: 7/32'' ]
Description:
Our Customizable Stainless Steel and Aluminum Standoffs are perfect for any multi-layer application. With a variety of different finishes, we are sure to have a standoff that makes your project unique. This line of standoffs will really make your project shine with the ability to hang up multiple layers and/ or to offset your panels. If you take a look to the right you will be able to check out precise technical descriptions for this particular standoff.
Title:
10-24 Threaded Barrels Diameter: 3/8'', Length: 1'', Black Anodized Aluminum [Required Material Hole Size: 7/32'' ]
SKU: S038-100B
Sku
S038-100B
Finish
Black Anodized
Inside/Outside
Inside Or Outside Use
Material
Aluminum
Diameter
3/8''
Distance From Wall
1''
Solid/Hollow
Solid
Head Shape
Flat
Shape
Cylinder
Washer
Not Included
Thread Type
Imperial
Thickness Material Accepted Between (0'' and Depends on Stud Length)
Thread 10-24
Maximum Thick. Material Depends on Stud Length
Screw Size for Installation 10-24
Installation

<p>The installation process for this line is quite simple.<br />First, mark on your surface the area for your holes.<br />Next you will want to drill a hole (according to your anchor type) and then insert your anchor.<br />Now, take your combination screw and insert that into the anchor.<br />After that, take your barrel and thread it onto your thread portion of your combination screw.<br />Now you will want to insert your stud about halfway into your barrel.<br />Place your material over the stud, then screw on your cap and you are done!<br />Step back and admire your work!</p>
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z, ANC5ZS
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware Anchor for concrete or drywall and 10-24 Studs / Combination Screws
Tools Required Hand Drill, 3/32'' Allen Key, Bit Driver (#400.424)
