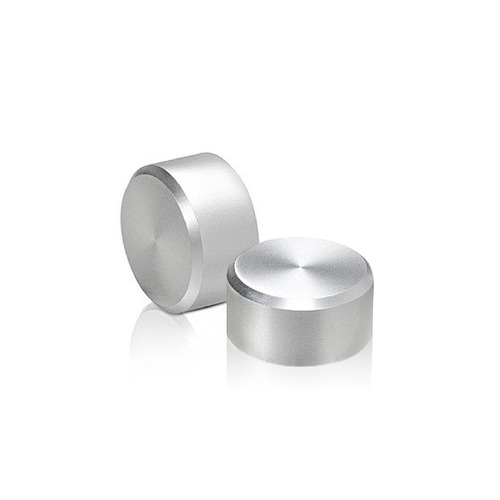

10-24 Threaded Caps Diameter: 3/4'', Height: 3/8'', Clear Anodized Aluminum [Required Material Hole Size: 7/32'']

Product 1

10-24 Threaded Caps Diameter: 3/4'', Height: 3/8'', Clear Anodized Aluminum [Required Material Hole Size: 7/32'']

SKU: CAP0751024A
Unit Price$2.44
Quantity Price Each (USD)
1-99 $2.44
100-501 $2.32
500+ $2.20
1000+ Contact Us

Select Diameter:
Select Thread:
Select Finish:

Clear Anodized

Black Anodized

Satin Brushed

Polished

10-24 Threaded Caps Diameter: 3/4'', Height: 3/8'', Clear Anodized Aluminum [Required Material Hole Size: 7/32'']

SKU: CAP0751024A
10-24 Threaded Caps Diameter: 3/4'', Height: 3/8'', Clear Anodized Aluminum [Required Material Hole Size: 7/32'']
Description:
Our Aluminum Caps are perfect for all your indoor and outdoor applications. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.

10-24 Threaded Caps Diameter: 3/4'', Height: 3/8'', Clear Anodized Aluminum [Required Material Hole Size: 7/32'']

SKU: CAP0751024A
Sku CAP0751024A
Finish Clear Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Diameter 3/4''
Cap Height 3/8''
Solid/Hollow Solid
Head Shape Flat
Shape Cylinder
Washer Not Included
Thread Type Imperial
Thickness Material Accepted Between (0'' and Depends on Stud Length)
Thread 10-24
Maximum Thick. Material Depends on Stud Length
Installation

The installation process for this line is quite simple.
First, mark on your surface the area for your holes.
Next you will want to drill a hole (according to your anchor type) and then insert your anchor.
Now, take your combination screw and insert that into the anchor.
After that, take your barrel and thread it onto your thread portion of your combination screw.
Now you will want to insert your stud about halfway into your barrel.
Place your material over the stud, then screw on your cap and you are done!
Step back and admire your work!
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware Anchor for concrete or drywall and 5/16-18 Studs, #8 Combination Screws
Tools Required Hand Drill, HEXBIT1/8, ALLEN5/32, ALLEN1/8

10-24 Threaded Caps Diameter: 3/4'', Height: 3/8'', Clear Anodized Aluminum [Required Material Hole Size: 7/32'']

SKU: CAP0751024A
