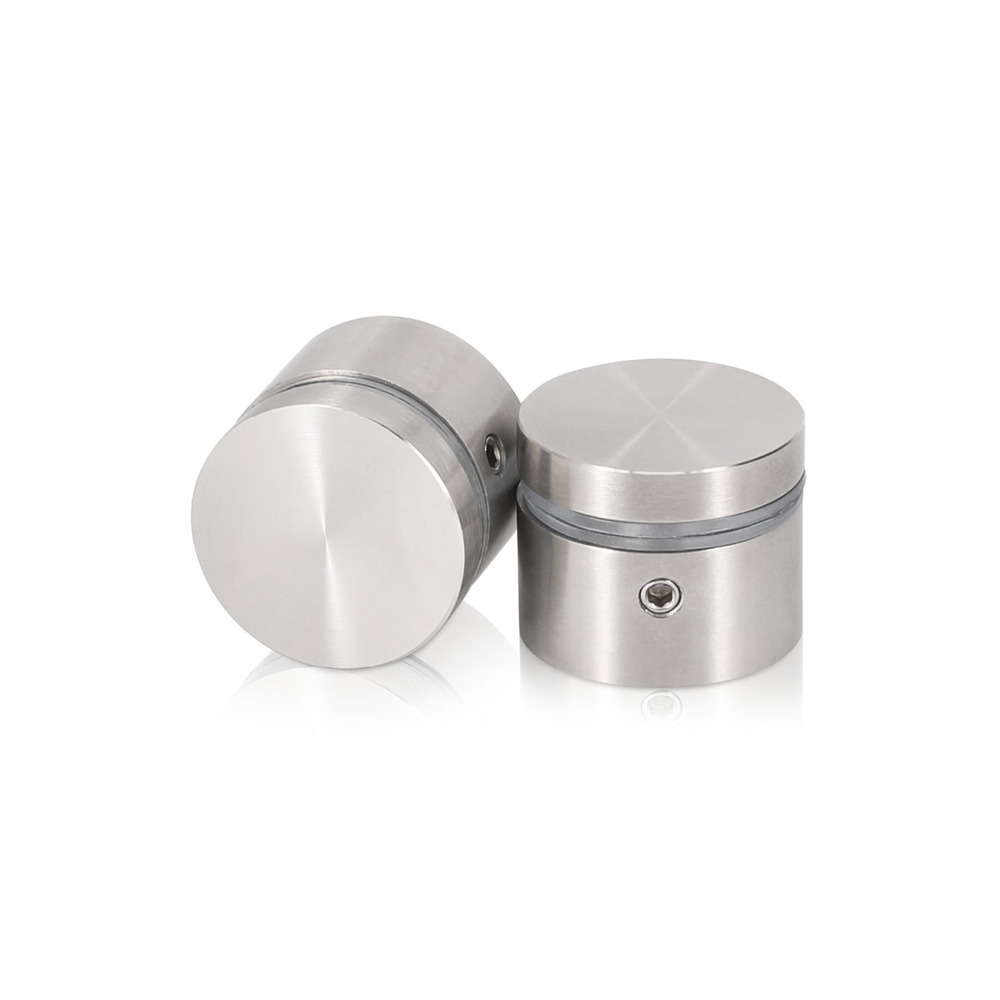

316 Marine Grade Stainless Steel Locking Standoffs, Diameter: 1'', Standoff: 1/2'', Satin Finish

1'' Diameter X 1/2'' Barrel Length, (316 Marine Grade) Stainless Steel

  1. Home
  2. 1'' Diameter X 1/2'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']
1'' Diameter X 1/2'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']
Title:
1'' Diameter X 1/2'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']
SKU: 316LBLS25-12
Unit Price$6.62
Quantity Price Each (USD)
1-99 $6.62
100-499 $6.22
500+ $5.83
1000+ Contact Us
Select Diameter:
Select Distance From Wall:
Select Grade:
Select Finish:

Satin Brushed

Title:
1'' Diameter X 1/2'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']
SKU: 316LBLS25-12
1'' Diameter X 1/2'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']
Description:
Keep your hard work safe with our Locking Tamper Proof Standoffs for Coastal Environments! Our Tamper Proof Stainless Steel Standoffs are perfect for all your indoor or outdoor applications. 316 Grade Stainless Steel has a smooth surface finish, is more corrosion-resistant, and is the most commonly used stainless steel for coastal locations. Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look to the right, you will notice technical descriptions about this particular standoff.
Title:
1'' Diameter X 1/2'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']
SKU: 316LBLS25-12
Sku
316LBLS25-12
Finish
Satin Brushed
Inside/Outside
Inside Or Outside Use
Material
Stainless Steel
Diameter
1''
Distance From Wall
1/2''
Material Grade
316
Cap Height
3/16''
Solid/Hollow
Solid
Head Shape
Flat
Length
1/2''
Shape
Cylinder
Washer
Included Silicone Washers
Thread Type
Metric
Thickness Material Accepted Between (0'' and 5/16'')
Thread Metric M10x150
Required Material Hole Size 7/16''
Maximum Thick. Material 5/16''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff, remove the cap, insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Screw Driver, Hand drill, 2MM Hex Key for M4 Set Screw
