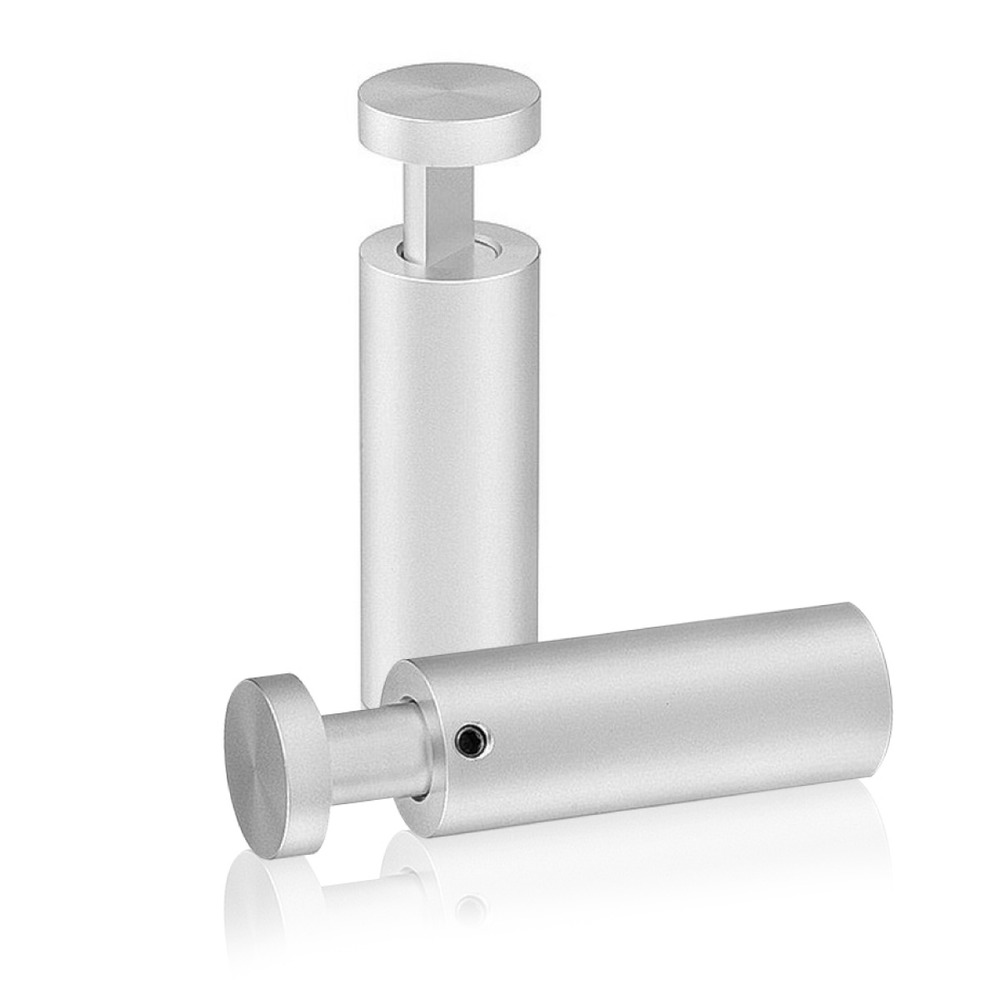

3/4'' Diameter X 2'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Adjustable Edge Grip Standoff (For Inside Use Only)

3/4'' Diameter X 2'' Barrel Length, Aluminum Clear Anodized Finish. Ea

3/4'' Diameter X 2'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Adjustable Edge Grip Standoff (For Inside Use Only)
Title:
3/4'' Diameter X 2'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Adjustable Edge Grip Standoff (For Inside Use Only)
SKU: EG075-200A
Unit Price$8.73
Quantity Price Each (USD)
1-99 $8.73
100-499 $7.86
500+ $6.98
1000+ Contact Us
Select Material:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Gold Anodized

Title:
3/4'' Diameter X 2'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Adjustable Edge Grip Standoff (For Inside Use Only)
SKU: EG075-200A
3/4'' Diameter X 2'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Adjustable Edge Grip Standoff (For Inside Use Only)
Description:
Our Adjustable Edge Grips are the perfect solution without the need to drill holes in your material. With a variety of different finishes in Stainless Steel and Aluminum, we are sure to have an Edge Grip that makes your project stand out. This line of edge grips will make your project shine with the ability to hang up anything up to 1/2''. Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.
Title:
3/4'' Diameter X 2'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Adjustable Edge Grip Standoff (For Inside Use Only)
SKU: EG075-200A
Sku
EG075-200A
Finish
Clear Anodized
Inside/Outside
Inside Or Outside Use
Material
Aluminum
Diameter
3/4''
Distance From Wall
2''
Material Grade
6063
Cap Height
3/16''
Solid/Hollow
Solid
Head Shape
Flat
Length
2''
Shape
Cylinder
Washer
Included
Thickness Material Accepted Between (0'' and 1/2'')
Required Material Hole Size 7/16''
Maximum Thick. Material 1/2''
Screw Size for Installation #8
Installation

To install our Edge Grips is quick and easy.
Mark on your surface area where you will put your holes.
Now, drill a hole for each marked area (hole size is according to anchor type), and then insert your anchors into each hole.
After you put your anchors in you will want to take an Allen key and unlock the edge grip.
Remove the head of the edge grip and insert the Phillips flat head screw into the barrel and screw into your anchor.
You will now want to insert the heads back into the barrels (do not tighten down yet).
Now, place your material in the slots of the edge grips and push the head down until it is tight on your material.
Lastly, take your Allen key and tighten down the set screw to keep the heads tightly holding your material.
Once this is complete, wipe off any finger smudges on the standoff and stare in amazement at your completed project.

Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 19 lbs / 9 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Screw Driver, Hand drill, 2MM Hex Key for M4 Set Screw
