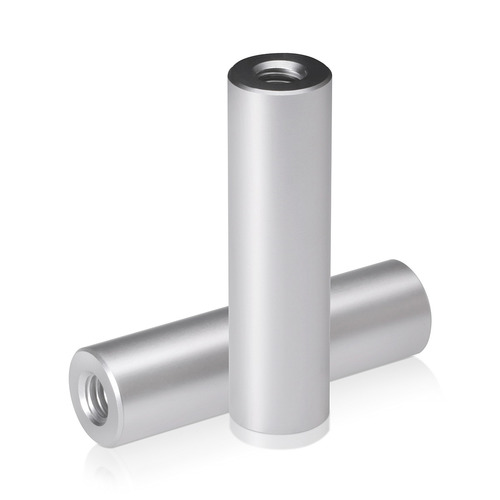

3/8-16 Threaded Barrels Diameter: 3/4'', Length: 2 1/2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

Product 1

3/8-16 Threaded Barrels Diameter: 3/4'', Length: 2 1/2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

SKU: S075-25038A
Unit Price$4.75
Quantity Price Each (USD)
1-99 $4.75
100-501 $4.51
500+ $4.28
1000+ Contact Us

Select Material:
Select Diameter:
Select Distance From Wall:
Select Thread:
Select Finish:

Clear Anodized

3/8-16 Threaded Barrels Diameter: 3/4'', Length: 2 1/2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

SKU: S075-25038A
3/8-16 Threaded Barrels Diameter: 3/4'', Length: 2 1/2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

3/8-16 Threaded Barrels Diameter: 3/4'', Length: 2 1/2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

SKU: S075-25038A
Sku S075-25038A
Finish Clear Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Diameter 3/4''
Solid/Hollow Solid
Shape Cylinder
Washer Not Included
Thread Type Imperial
Thickness Material Accepted Between (0'' and Depends on Stud Length)
Thread 3/8-16
Thread Depth 1'' Both Ends
Maximum Thick. Material Depends on Stud Length
Screw Size for Installation 3/8-16
Installation

The installation process for this line is quite simple.
First, mark on your surface the area for your holes.
Next you will want to drill a hole (according to your anchor type) and then insert your anchor.
Now, take your combination screw and insert that into the anchor.
After that, take your barrel and thread it onto your thread portion of your combination screw.
Now you will want to insert your stud about halfway into your barrel.
Place your material over the stud, then screw on your cap and you are done!
Step back and admire your work!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z, ANC6ZS
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware Anchor for concrete or drywall and 3/8-16 Studs
Tools Required Hand Drill, HEXBIT1/8, ALLEN5/32, ALLEN1/8
