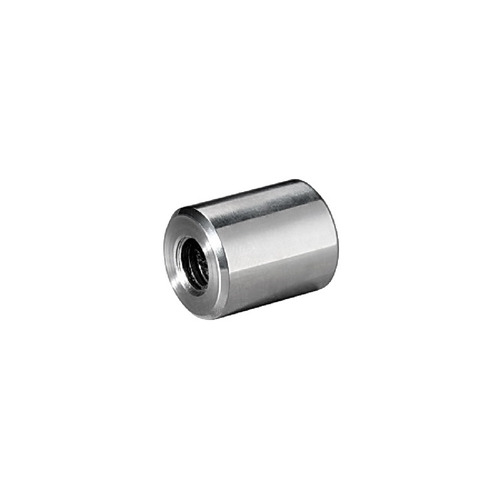

5/16-18 Threaded Barrels Diameter: 5/8'', Length: 3/4'', Polished Finish Grade 304

5/16-18 Threaded Barrels Diameter: 5/8'', Length: 3/4'', Polished Fini

  1. Home
  2. 5/16-18 Threaded Barrels Diameter: 5/8'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 3/8'' ]
5/16-18 Threaded Barrels Diameter: 5/8'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 3/8'' ]
Title:
5/16-18 Threaded Barrels Diameter: 5/8'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 3/8'' ]
SKU: S058-075SP
Unit Price$3.39
Quantity Price Each (USD)
1-99 $3.39
100-499 $3.05
500+ $2.71
1000+ Contact Us
Select Material:
Select Diameter:
Select Distance From Wall:
Select Thread:
Select Finish:

Satin Brushed

Polished

Title:
5/16-18 Threaded Barrels Diameter: 5/8'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 3/8'' ]
SKU: S058-075SP
5/16-18 Threaded Barrels Diameter: 5/8'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 3/8'' ]
Description:
Title:
5/16-18 Threaded Barrels Diameter: 5/8'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 3/8'' ]
SKU: S058-075SP
Sku
S058-075SP
Finish
Polished
Inside/Outside
Inside Or Outside Use
Material
Stainless Steel
Diameter
5/8''
Distance From Wall
3/4''
Solid/Hollow
Solid
Shape
Cylinder
Washer
Not Included
Thread Type
Imperial
Thickness Material Accepted Between (0'' and Depends on Stud Length)
Thread 5/16-18
Thread Depth Thru
Maximum Thick. Material Depends on Stud Length
Screw Size for Installation 5/16-18
Installation

<p>The installation process for this line is quite simple.<br />First, mark on your surface the area for your holes.<br />Next you will want to drill a hole (according to your anchor type) and then insert your anchor.<br />Now, take your combination screw and insert that into the anchor.<br />After that, take your barrel and thread it onto your thread portion of your combination screw.<br />Now you will want to insert your stud about halfway into your barrel.<br />Place your material over the stud, then screw on your cap and you are done!<br />Step back and admire your work!</p>
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z, ANC5ZS
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware Anchor for concrete or drywall and 5/16-18 Studs, #6 Combination Screws
Tools Required Hand Drill, HEXBIT1/8, ALLEN5/32, ALLEN1/8
