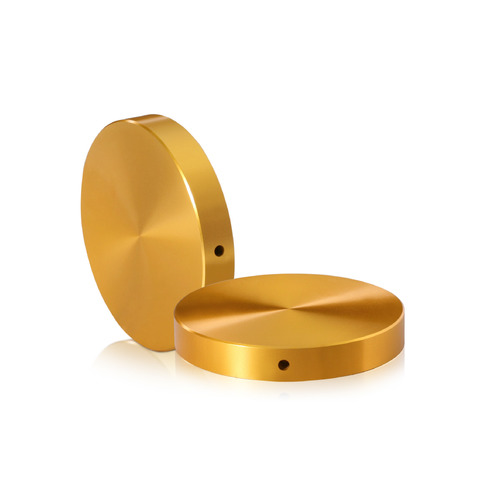

5/16-18 Threaded Locking Caps Diameter: 2'', Height: 5/16'', Gold Anodized Aluminum

Product 1

5/16-18 Threaded Locking Caps Diameter: 2'', Height: 5/16'', Gold Anodized Aluminum [Required Material Hole Size: 3/8'']

SKU: CAP200LG
Unit Price$5.29
Quantity Price Each (USD)
1-99 $5.29
100-501 $5.03
500+ $4.76
1000+ Contact Us

Select Diameter:
Select Thread:
Select Finish:

Clear Anodized

Black Anodized

Gold Anodized

Satin Brushed

Polished

5/16-18 Threaded Locking Caps Diameter: 2'', Height: 5/16'', Gold Anodized Aluminum [Required Material Hole Size: 3/8'']

SKU: CAP200LG
5/16-18 Threaded Locking Caps Diameter: 2'', Height: 5/16'', Gold Anodized Aluminum [Required Material Hole Size: 3/8'']
Description:

Our Aluminum Caps are perfect for all your indoor and outdoor applications. The Locking Caps have a small hole to allow you to use an M4 Allen Wrench to tighten it down even further, which both increases the solidity of your installation and decreases the possibility of theft!

The elegant finishes that we carry will give your display a unique look that will make it stand out like no other!

Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time!

If you look below you will notice technical descriptions about this particular standoff.

5/16-18 Threaded Locking Caps Diameter: 2'', Height: 5/16'', Gold Anodized Aluminum [Required Material Hole Size: 3/8'']

SKU: CAP200LG
Sku CAP200LG
Finish Gold Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Diameter 2''
Cap Height 5/16''
Solid/Hollow Solid
Head Shape Flat
Shape Cylinder
Washer Not Included
Thread Type Imperial
Thickness Material Accepted Between (0'' and Depends on Stud Length)
Thread 5/16-18
Maximum Thick. Material Depends on Stud Length
Installation

The installation process for this line is quite simple.
First, mark on your surface the area for your holes.
Next you will want to drill a hole (according to your anchor type) and then insert your anchor.
Now, take your combination screw and insert that into the anchor.
After that, take your barrel and thread it onto your thread portion of your combination screw.
Now you will want to insert your stud about halfway into your barrel.
Place your material over the stud, then screw on your cap, tighten by hand first, then use an M4 Allen Wrench to tighten it down even further
By using an Allen Wrench to apply extra torque to the cap, you make it nearly impossible to unscrew the cap by hand, which both increases the solidity of your installation and decreases the possibility of theft!
All that's left to do now is step back and admire your work!
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware Anchor for concrete or drywall and 5/16-18 Studs, #8 Combination Screws
Tools Required Hand Drill, M4 Allen Key

5/16-18 Threaded Locking Caps Diameter: 2'', Height: 5/16'', Gold Anodized Aluminum [Required Material Hole Size: 3/8'']

SKU: CAP200LG
