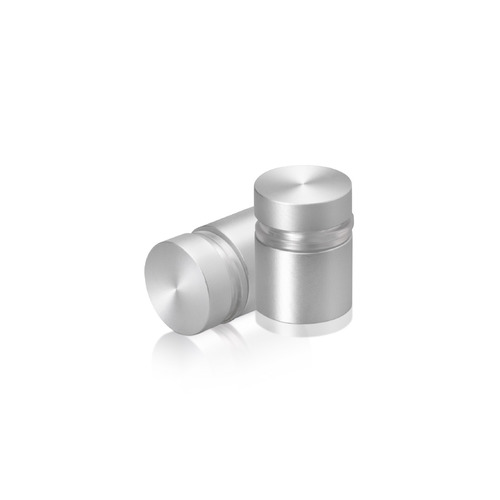

5/8'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

Product 1

5/8'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-12A
Unit Price$2.63
Quantity Price Each (USD)
1-99 $2.63
100-501 $2.50
500+ $2.37
1000+ Contact Us

Click Here To View Similar Products In Our Catalog
Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

5/8'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-12A
5/8'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
These standoffs Systems are developed and produced to the highest standards; as well as offer the complying with awesome characteristics that will certainly allow you to produce one of the most reliable and desirable displays within your budget plan. These new tamper proof, flat head standoffs are engineered with a reverse thread for indoor and outside usage. MBS-Standoffs offer a considerable selection of dimensions & sizes to fulfill any need . In addition, there is an excellent selection of finishes to accomplish any of your imaginative assumptions. There will clearly be no quality worry about our items as well as the pricing vs. quality is the most effective you will certainly discover out there.

5/8'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-12A
Sku FAH16-12A
Finish Clear Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 5/8''
Distance From Wall 1/2''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 1/2''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 3/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 3/8''
Screw Size for Installation #6
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware #6 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
