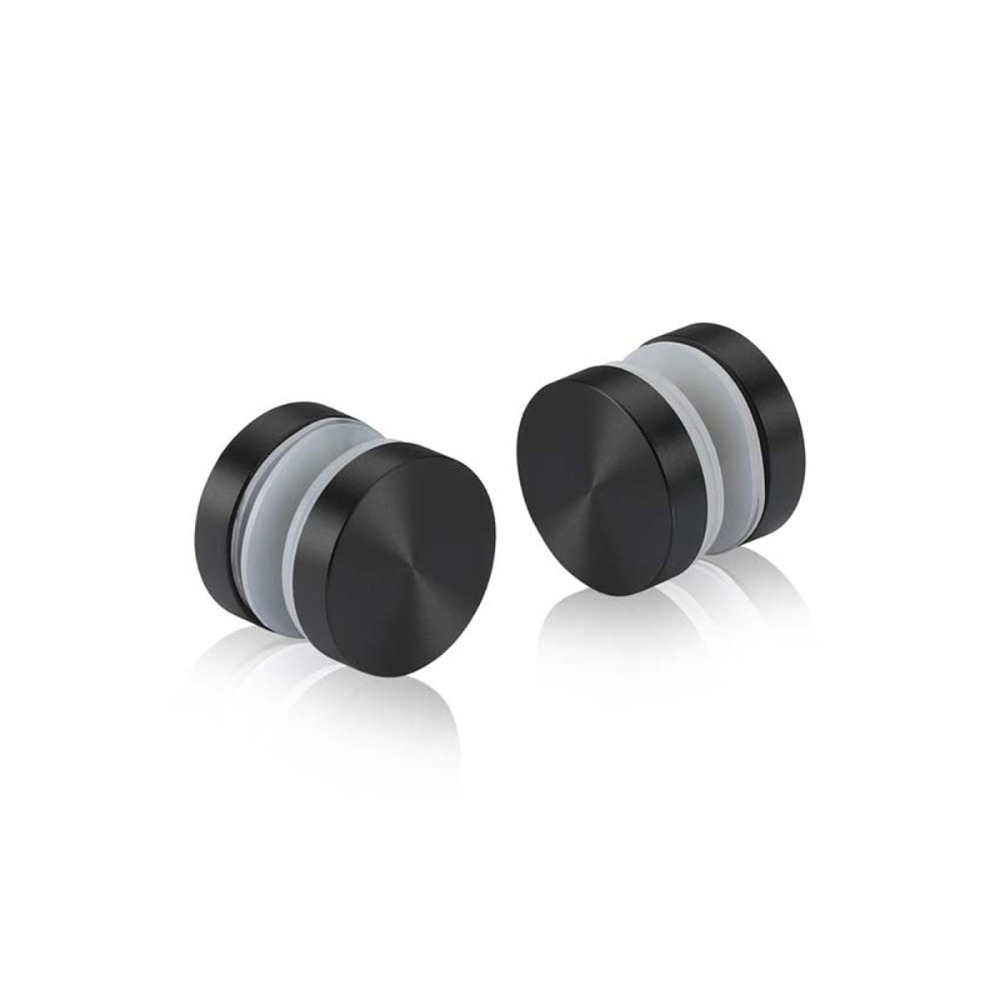

7/8'' Diameter Matte Black Anodized Aluminum, Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')

Product 1

7/8'' Diameter Matte Black Anodized Aluminum, Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')

SKU: MFC087MB
Unit Price$3.96
Quantity Price Each (USD)
1-99 $3.96
100-501 $3.76
500+ $3.56
1000+ Contact Us

Select Shape:
Select Diameter:
Select Finish:

Clear Anodized

Matte Black

Brushed

Champagne Anodized

Gold Anodized

Matte Black Anodized

Polished

Clear Shiny Anodized

7/8'' Diameter Matte Black Anodized Aluminum, Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')

SKU: MFC087MB
7/8'' Diameter Matte Black Anodized Aluminum, Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')
Description:

Perfect for joining vertical interior panels of heavy glass in malls, these Mall Front Clamps offer convenience and safety. They are designed to be used with 1/4'' to 1/2'' (6 to 12mm) tempered glass and are compatible with monolithic tempered glass. These clamps are easy to install and help prevent finger or clothing entrapment between the glass panels. To tighten the round cap, simply insert a 3/32'' drill into the round hole in the beveled edge and turn. The 7/8'' (22mm) diameter clamps are available in either solid brass construction with brushed nickel, brass, or chrome finishes, or aluminum construction with satin anodized or black finishes. It is recommended to maintain a minimum gap of 1/4'' (6mm) between the panels. For custom finishes, please contact the MBS Technical Sales Department. Please note that shipping weights provided are approximate and have not been verified. If you require the exact weight for shipping cost calculation, kindly request this information from MBS Customer Service before submitting your order. The product images shown are either of the actual product or a close representation. Please be aware that colors may vary due to differences in computer video cards and monitor color settings. Assembled with 4 x Clear Silicone Washer 1 x Black Hex Drive Flat Head Screws M4 x 18mm 1 x Black Hex Drive Flat Head Screws M4 x 20mm in separate clear bag 1 x Black Hex Drive Flat Head Screws M4 x 30mm in separate clear bag 1 x 2.5 Zinc Allen Wrench

7/8'' Diameter Matte Black Anodized Aluminum, Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')

SKU: MFC087MB
Sku MFC087MB
Finish Matte Black Anodized
Inside/Outside Indoor / Outdoor
Material Aluminum
Material Grade 6063
Diameter 7/8''
Solid/Hollow Solid
Shape Cylinder
Washer Included
Thread Type Metric
Thickness Material Accepted Between (1/4'' and 1/2'')
Thread M4x0.70
Maximum Thick. Material 1/2''
Installation

Very easy to install!, unscrew, Select correct screw to match with your glass thickness, place between your glass and tighten firmly with Allen key supplied with. Voila!

Tools Required Allen Key 2.5mm

7/8'' Diameter Matte Black Anodized Aluminum, Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')

SKU: MFC087MB
