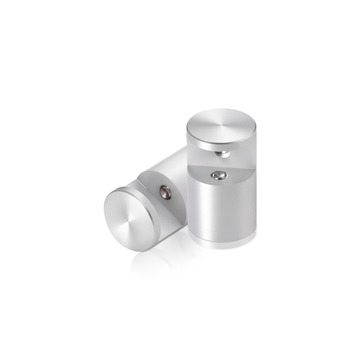

9/16'' Diameter X 9/16'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)

9/16'' Diameter X 9/16'' Barrel Length, Aluminum Clear Anodized Finish

9/16'' Diameter X 9/16'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)
Title:
9/16'' Diameter X 9/16'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)
SKU: 105.015A
Unit Price$5.78
Quantity Price Each (USD)
1-99 $5.78
100-499 $5.20
500+ $4.62
1000+ Contact Us
Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Gold Anodized

Satin Brushed

Title:
9/16'' Diameter X 9/16'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)
SKU: 105.015A
9/16'' Diameter X 9/16'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)
Description:

Our Fixed Edge Grips are the perfect solution without the need to drill holes in your material. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! This line of edge grips will make your project shine with the ability to hang up anything up to 5/16''. Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.

Title:
9/16'' Diameter X 9/16'' Barrel Length, Aluminum Clear Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)
SKU: 105.015A
Sku
105.015A
Finish
Clear Anodized
Inside/Outside
Inside Use Only
Material
Aluminum
Diameter
9/16''
Distance From Wall
9/16''
Material Grade
6063
Cap Height
1/16''
Solid/Hollow
Solid
Head Shape
Flat
Length
9/16''
Shape
Cylinder
Washer
Not Included
Thickness Material Accepted Between (1/8'' and 5/16'')
Required Material Hole Size 3/8''
Maximum Thick. Material 5/16''
Screw Size for Installation #6
Installation

To install our Edge Grips is quick and easy.
Mark on your surface area where you will put your holes.
Now, drill a hole for each marked area (hole size is according to anchor type), and then insert your anchors into each hole.
After you put your anchors in you will want to take an Allen key and unlock the edge grip.
Remove the edge grip from the base and insert the Phillips flat head screw into the barrel and screw into your anchor.
You will now want to insert the edge grip back into the base and tighten to the base.
Lastly, place your material in the slots of the edge grips and tighten the set screw down until it is tight on your material.
Once this is complete, wipe off any finger smudges on the standoff and stare in amazement at your completed project.

Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #6 Screw & Anchor
Tools Required Screw Driver, Hand drill, 2MM Hex Key for M4 Set Screw
