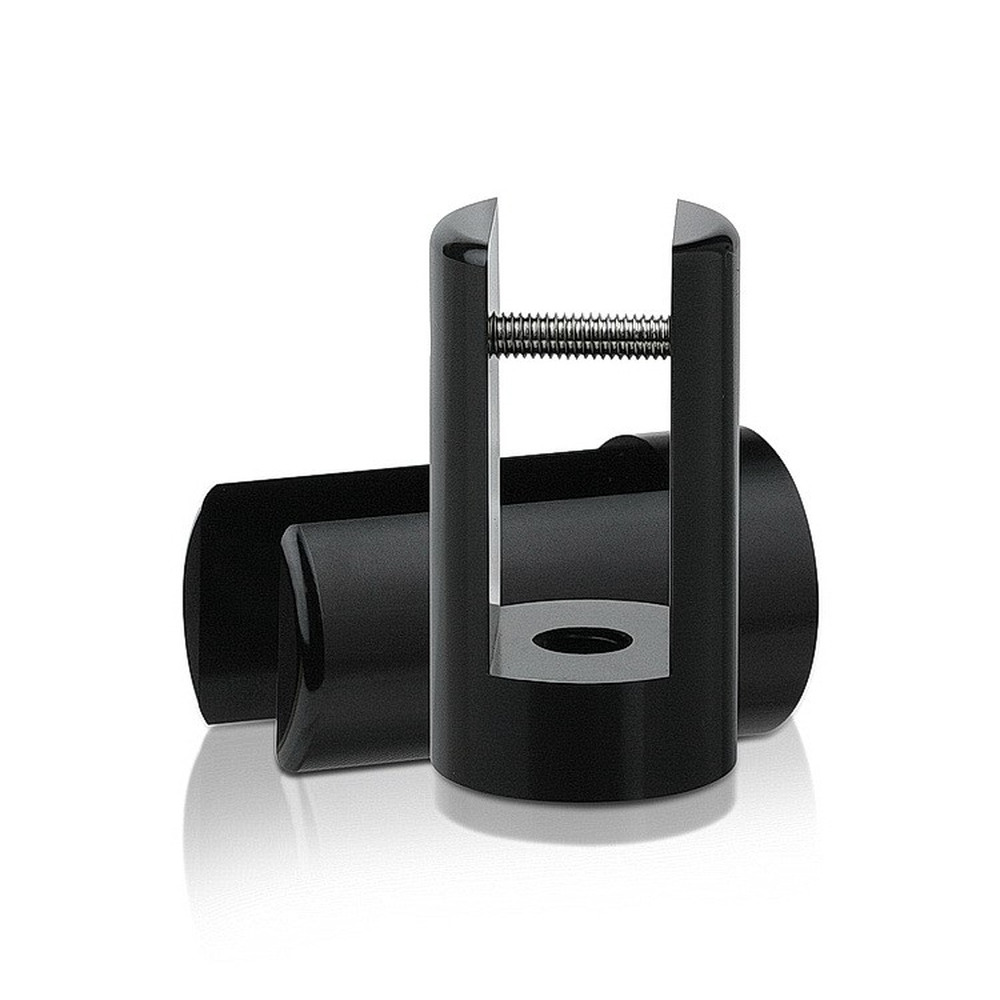

Aluminum Titanium Anodized Finish Projecting Gripper, Holds Up To 1/2'' Material

Product 1

Aluminum Titanium Anodized Finish Projecting Gripper, Holds Up To 1/2'' Material

SKU: PGS500T
Unit Price$10.08
Quantity Price Each (USD)
1-99 $10.08
100-501 $9.58
500+ $9.07
1000+ Contact Us

Click Here To View Similar Products In Our Catalog
Select Diameter:
Select Distance from Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Gold Anodized

Satin Brushed

Polished

Aluminum Titanium Anodized Finish Projecting Gripper, Holds Up To 1/2'' Material

SKU: PGS500T
Aluminum Titanium Anodized Finish Projecting Gripper, Holds Up To 1/2'' Material
Description:
Our projecting and gripper systems are a fantastic way to set your company apart. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! Our projecting system requires a small hole to be drilled through the material to ensure the most secure fit. If you look below you will notice technical descriptions about this particular projecting standoff.

Aluminum Titanium Anodized Finish Projecting Gripper, Holds Up To 1/2'' Material

SKU: PGS500T
Sku PGS500T
Finish Titanium
Inside/Outside Inside Or Outside Use
Material Aluminum
Diameter 1''
Distance From Wall 1-3/8''
Length 1-3/4''
Washer Not Needed
Thickness Material Accepted Between (0'' and 9/16'')
Maximum Thick. Material 9/16''
Screw Size for Installation 5/16-18 to #6
Installation

Installation is very easy!
First, mark where you will mount your standoffs, then drill any holes necessary and insert your anchors.
Next, loosen the Set Screw from the Projecting Wall mount and screw the Projecting Wall Mount securely into your anchor.
When your Projecting Wall Mounts are attached to the wall, place your material in the Projecting Wall Mount and tighten down the set screw.
When all points are tightened down, take a step back and admire your beautiful display!
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Installation Hardware HB5/16-100 Combination Screw and #6 Anchor
Tools Required M4 Hex key, 1/8'' Hex key
