Ceiling Mounted Material Holder for Cable System

Ceiling Mounted Material Holder for Cable System

Ceiling Mounted Material Holder for Cable System
Title:
Ceiling Mounted Material Holder for Cable System
SKU: 100.268
Unit Price$5.61
Quantity Price Each (USD)
1-99 $5.61
100-499 $5.05
500+ $4.49
1000+ Contact Us
Select Material:
Select Finish:

Satin Brushed

Title:
Ceiling Mounted Material Holder for Cable System
SKU: 100.268
Ceiling Mounted Material Holder for Cable System
Description:
Our Ceiling Mount provides the perfect way to easily suspend items in our gorgeous Cable Systems. It is a vital part to a functional system and has a beautiful finish to match your Cable System perfectly. The combination of many high quality parts like this is what gives our Display Systems the ability to become extremely versatile and provides an application for nearly any situation you can imagine! If you look below you will notice technical descriptions about this particular item.
Title:
Ceiling Mounted Material Holder for Cable System
SKU: 100.268
Sku
100.268
Finish
Satin Brushed
Inside/Outside
Inside Use Only
Material
Stainless Steel
Diameter
5/8''
Distance From Wall
1-3/16''
Cable Diameter
1/16''
Length
1-3/16''
Washer
Not Needed
Rated Strength
55 lbs (25 Kg) per Steel Cable (When Properly Installed)
Application
Ceiling Suspended
Installation

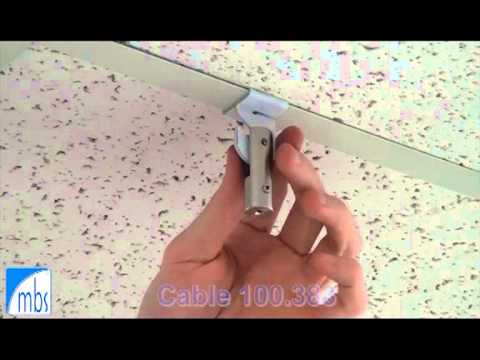

The installation process is very easy!
First, mark where you will be hanging your ceiling mount(s)
Then, drill any necessary holes and install your anchors.
Next, loosen the set screw and remove the threaded ceiling support.
Slide a screw through the ceiling support and screw it securely into the anchor.
Before screwing the Ceiling Mounted Material Holder to the threaded ceiling support, slide your cable all the way through the top of the Material Holder.
Now just screw the Material Holder onto the ceiling support, attach your choice of hanging fork, and enjoy your gorgeous signage!

Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Installation Hardware #8 Screw & Anchor
Tools Required Screw Driver, Hand drill, M4 Hex Key
