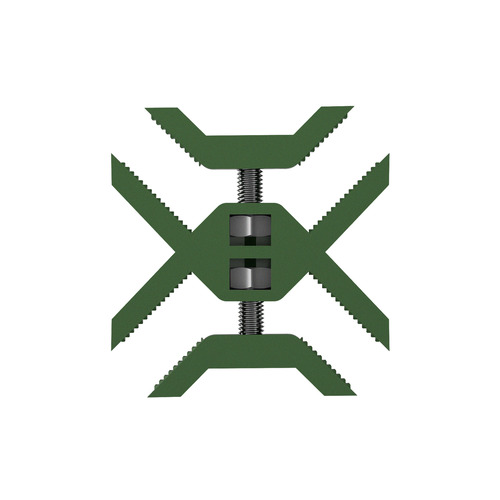

Cross Connector, ABS Olive (Pantone 363C) for 5/8" and 3/4" Panels
SKU: PCCROSSOL
Select Your Preferences
Unit Price$3.53
| Quantity | Price Each (USD) |
|---|---|
| 1-95 | $3.53 |
| 96-481 | $3.18 |
| 480+ | $2.82 |
| 960+ | Contact Us |
Cross Connector, ABS Olive (Pantone 363C) for 5/8" and 3/4" Panels
SKU: PCCROSSOL
Description:
The Cross connector allows you to create a right angle between two panels with a thickness ranging from 5/8'' and 3/4'' (16 or 19 mm). Each Panel clamp is crafted from high-tech reinforced plastic, designed to withstand heavy loads.
Cross Connector, ABS Olive (Pantone 363C) for 5/8" and 3/4" Panels
SKU: PCCROSSOL| Sku | PCCROSSOL |
| Finish | Olive (Pantone 363C) |
| Inside/Outside | Inside Use Only |
| Material | ABS Plastic |
| Size | 3-1/2'' x 1-9/16'' |
| Load | 260lbs (120Kg) |
| Thread | Metric M8x125 |
| Maximum Thick. Material | 3/4'' |
| Material Thickness | 5/8'' Or 3/4'' |
| Installation |
Easy to install, simply slide your material into each side of the clamp and tighten with a 6mm Allen key. |
| Tools Required | 5mm Allen key |
