Rod Tension Adjuster

SKU: 100.362-R

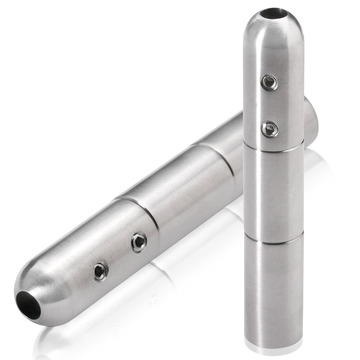

Rod Tension Adjuster
Description:
Our Rod Tension Adjuster is used in our Rod Display Systems to add tension, preventing slack in the rod and ensuring all of your hanging items are secure. It is a vital part to a functional system and has a beautiful finish to match your Rod System perfectly. The combination of many high quality parts like this is what gives our Display Systems the ability to become extremely versatile and provides an application for nearly any situation you can imagine! If you look below you will notice technical descriptions about this particular item.

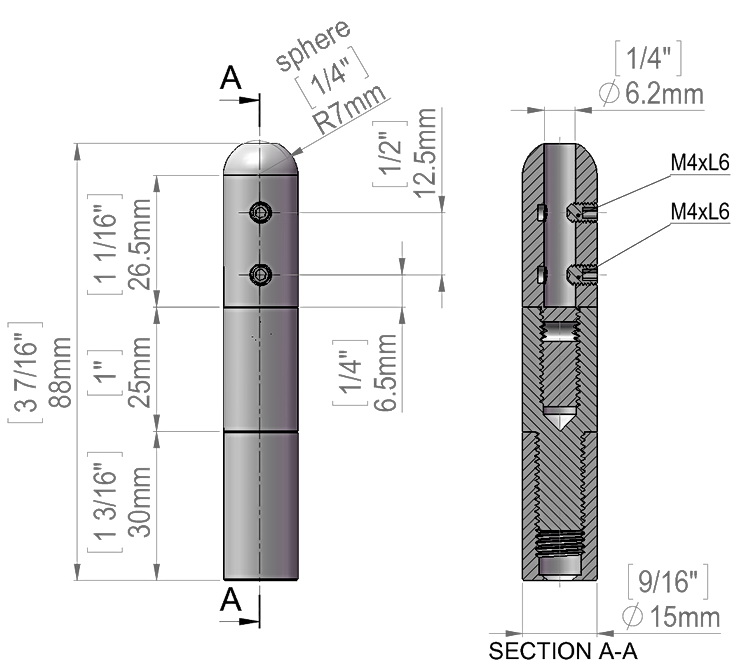

Rod Tension Adjuster

SKU: 100.362-R
Sku 100.362-R
Finish Satin Brushed
Inside/Outside Inside Use Only
Material Stainless Steel
Diameter 9/16''
Distance From Wall 2-3/16''
Length 3-7/16''
Washer Not Included
Rated Strength 55 lbs (25 Kg) per Steel Cable (When Properly Installed)
Application On Cable
Screw Size for Installation N/A
Installation

The installation process is very easy!
First, mark where you will be hanging your wall, ceiling, or floor mounts.
Then, drill any necessary holes and install your anchors.

The rod will be installed into both the Tensioner and the Ceiling mount and then tightened down.

Before installing anything, slide your Rod Supports onto your rod, then install the bottom components, followed by your rod and your upper components.

If you are installing a Wall Mounted System, you will install the Vertical Assembly Arm(s) and then attach the Rod Tensioner and/or Ceiling Mount into the Vertical Assembly arm.
All that's left is to hang your material, tighten the set screws, and enjoy your beautiful display!

Anchor for Concrete N/A
Anchor for Dry Wall N/A
Installation Hardware #8 Screw & Anchor
Tools Required M4 Hex key, Screwdriver
