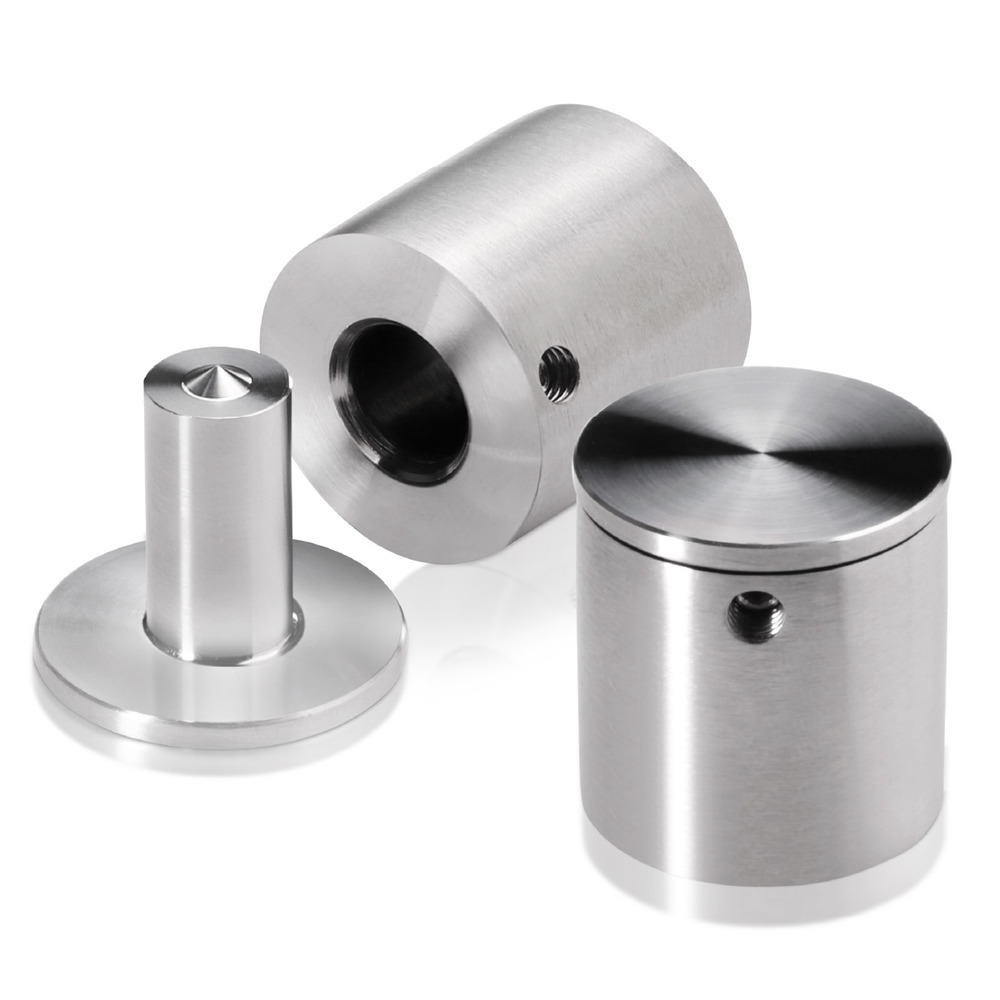

Stainless Steel Glass Standoff, Diameter: 1'', Standoff: 1'', Satin Brushed Finish (Indoor Use Only)

1'' Diameter x 1'' Barrel Length, Stainless Steel Glass Standoff Satin Brushed Finish (Indoor) [Required Material Hole Size: 7/16'']

SKU: GS100-100S

Unit Price$7.17

Select Material:

Aluminum

Stainless Steel

Select Diameter:

1/2''

3/4''

1''

Select Distance From Wall:

5/16''

1''

2''

Select Finish:

Satin Brushed

1'' Diameter x 1'' Barrel Length, Stainless Steel Glass Standoff Satin Brushed Finish (Indoor) [Required Material Hole Size: 7/16'']

SKU: GS100-100S

1'' Diameter x 1'' Barrel Length, Stainless Steel Glass Standoff Satin Brushed Finish (Indoor) [Required Material Hole Size: 7/16'']

SKU: GS100-100S

Thickness Material Accepted	Between (0'' and 1/2'')
Required Material Hole Size	7/16''
Maximum Thick. Material	1/2''

Screw Size for Installation	#8
Installation	The installation process is very easy! First utilize your surface to mark the holes. Next you will want to drill a hole and insert your anchors. Take your standoff, remove the cap, insert a screw inside the barrel and screw it into the anchor Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete	ANC2
Anchor for Dry Wall	ANC6, ANC6Z
Load Capacity Per Standoff	15 lbs / 7 Kg

Installation Hardware	#8 Screw & Anchor
Tools Required	Screw Driver, Hand drill, 2MM Hex Key for M4 Set Screw
