Stainless Steel Glass Standoff, Diameter: 3/4'', Standoff: 1'', Satin Brushed Finish (Indoor Use Only)

Product 1

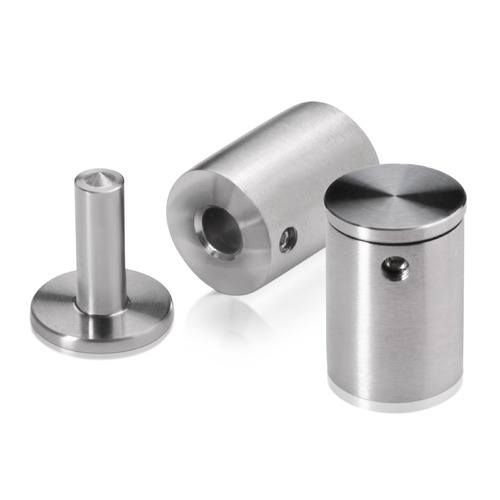

3/4'' Diameter x 1'' Barrel Length, Stainless Steel Glass Standoff Satin Brushed Finish (Indoor) [Required Material Hole Size: 7/16'']

SKU: GS075-100S
Unit Price$5.18
Quantity Price Each (USD)
1-99 $5.18
100-501 $4.92
500+ $4.66
1000+ Contact Us

Select Material:
Select Diameter:
Select Distance From Wall:
Select Finish:

Satin Brushed

3/4'' Diameter x 1'' Barrel Length, Stainless Steel Glass Standoff Satin Brushed Finish (Indoor) [Required Material Hole Size: 7/16'']

SKU: GS075-100S
3/4'' Diameter x 1'' Barrel Length, Stainless Steel Glass Standoff Satin Brushed Finish (Indoor) [Required Material Hole Size: 7/16'']
Description:
Our Glass Standoffs are perfect for all your indoor glass applications. The elegant finishes that we carry will give your glass display a unique look that will make it stand out like no other! Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.

3/4'' Diameter x 1'' Barrel Length, Stainless Steel Glass Standoff Satin Brushed Finish (Indoor) [Required Material Hole Size: 7/16'']

SKU: GS075-100S
Sku GS075-100S
Finish Satin Brushed
Inside/Outside Inside Use Only
Material Stainless Steel
Material Grade 201
Diameter 3/4''
Distance From Wall 1''
Cap Height 1/16''
Solid/Hollow Solid
Head Shape Flat
Length 1''
Shape Cylinder
Washer Not Included
Thickness Material Accepted Between (0'' and 1/2'')
Required Material Hole Size 7/16''
Maximum Thick. Material 1/2''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff, remove the cap, insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Screw Driver, Hand drill, 2MM Hex Key for M4 Set Screw
