Suspended Cable System Kit (2 full set) - 1/16'' Diameter Cable

Product 1

Suspended Cable System Kit (2 full set) - 1/16'' Diameter Cable

SKU: SUSKIT1
Unit Price$10.99
Quantity Price Each (USD)
1-99 $10.99
100-501 $19.11
500+ $18.11
1000+ Contact Us

Select Material:

Suspended Cable System Kit (2 full set) - 1/16'' Diameter Cable

SKU: SUSKIT1
Suspended Cable System Kit (2 full set) - 1/16'' Diameter Cable
Description:

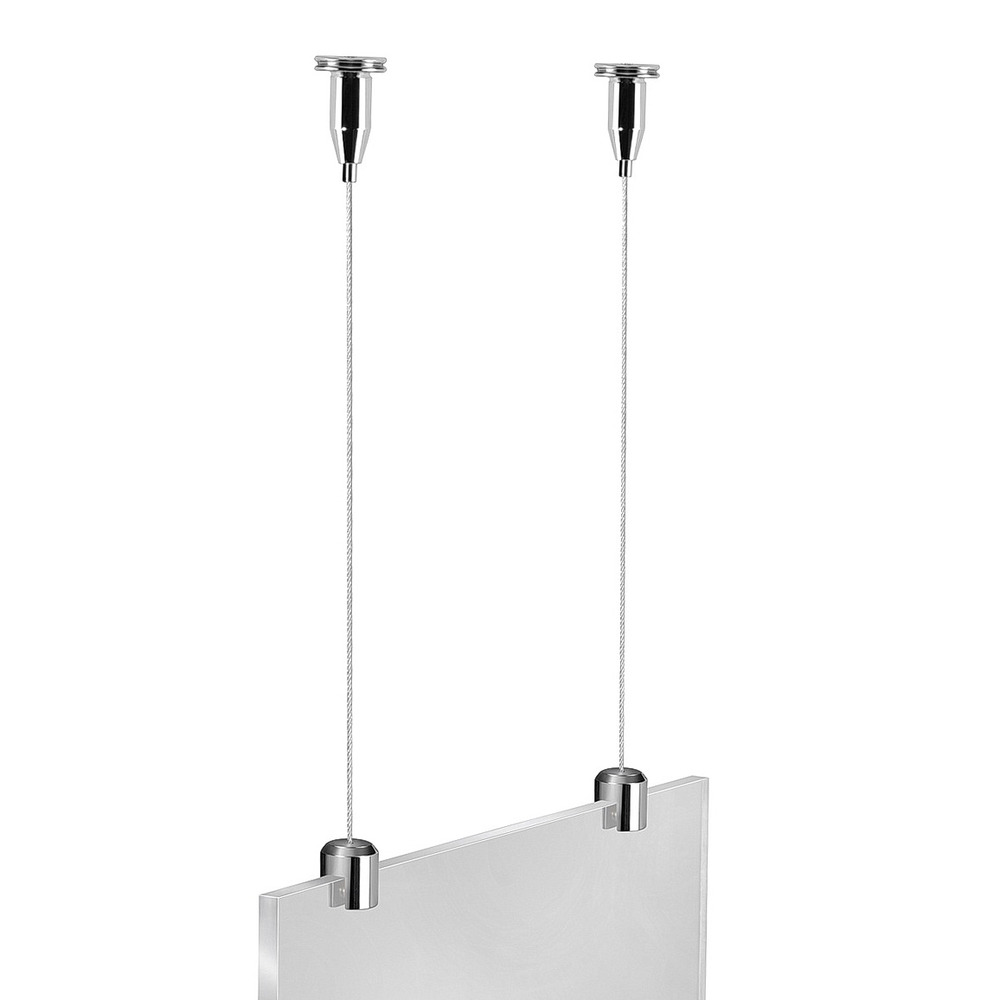

Our Suspended Cable System Kit includes 2 full suspension sets with2 Ceiling mounts, 2 Cables, and 2 Hanging Forks. Adjustable ''Quick Locking'' cable mechanism makes it easy to get your sign perfectly leveled. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other. Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular package.

Suspended Cable System Kit (2 full set) - 1/16'' Diameter Cable

SKU: SUSKIT1
Sku SUSKIT1
Inside/Outside Inside Use Only
Material Brass Steel
Diameter 1/2''
Distance From Wall 4/5''
Cable Diameter 1/16''
Length 24''
Washer Not Included
Rated Strength 55 lbs (25 Kg) per Steel Cable (When Properly Installed)
Application Ceiling Suspended
Thickness Material Accepted Between (1/4'' and 1/4'')
Maximum Thick. Material 1/4''
Duty Light Duty
Screw Size for Installation #6
Installation

The installation process is very easy!
First, mark where you will be hanging your ceiling mounts
Then, drill any necessary holes and install your anchors.
Next, loosen the set screw and remove the ceiling support holder.
Slide a screw through the ceiling support holder and screw it securely into the anchor.
Before screwing the Ceiling Mounted Material Holder to the threaded ceiling support, slide your cable all the way through the top of the Material Holder.
Now place the Material Holder onto the ceiling support holder and tighten the set screw.
Cut the cable at the desired length, thread it into the top of your hanging fork, and tighten the set screw.
All that's left is to hang your material, tighten the set screw, and enjoy your beautiful display!

Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Installation Hardware #6 Screw & Anchor
Tools Required M4 Hex key, Screwdriver
