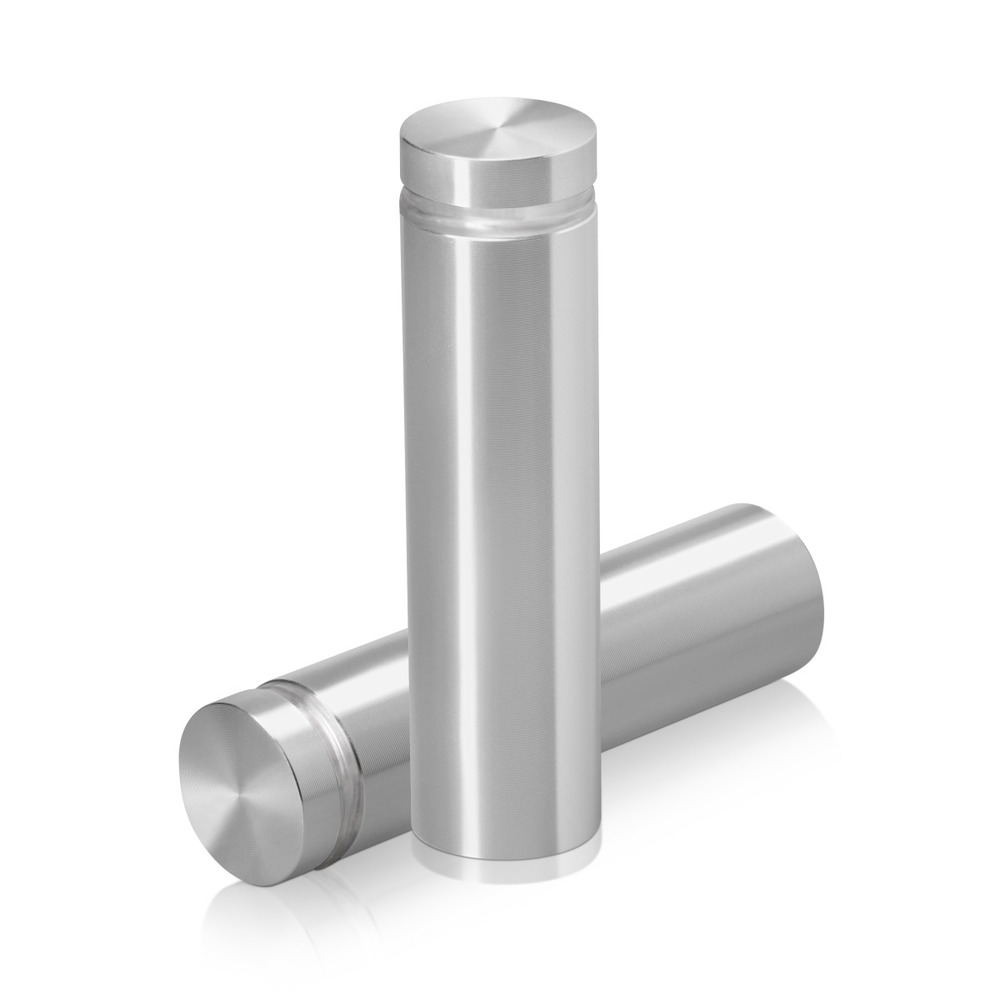

Tamper Proof Aluminum Flat Head Standoffs, Diameter: 3/4'', Standoff: 2 1/2'', Clear Anodized Shiny Finish

Product 1

3/4'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH19-70AS
Unit Price$6.16
Quantity Price Each (USD)
1-99 $6.16
100-501 $5.85
500+ $5.54
1000+ Contact Us

Click Here To View Similar Products In Our Catalog
Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

3/4'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH19-70AS
3/4'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
MBS is happy to offer the brand-new effective line of Flat Head 2 1/2'' Standoff, 3/4'' Diameter Shiny Anodized, Tamper Proof, Reverse Threading aluminum standoffs. Our standoffs are created as well as made to the highest requirements; and supply the adhering to awesome qualities that will defiantly allow you to develop the most efficient and also attractive displays within your budget plan. These brand-new tamper proof, flat head standoffs are crafted with a reverse thread for interior and also exterior use. MBS-Standoffs provide an extensive selection of sizes & dimensions to satisfy any kind of need . Additionally, there is an exceptional selection of finishes to meet any of your imaginative expectations. There will certainly be no top quality interest in MBS's products and the prices vs. quality is the best you will locate in the industry.

3/4'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH19-70AS
Sku FAH19-70AS
Finish Silver Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 3/4''
Distance From Wall 2-1/2''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 2-1/2''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
