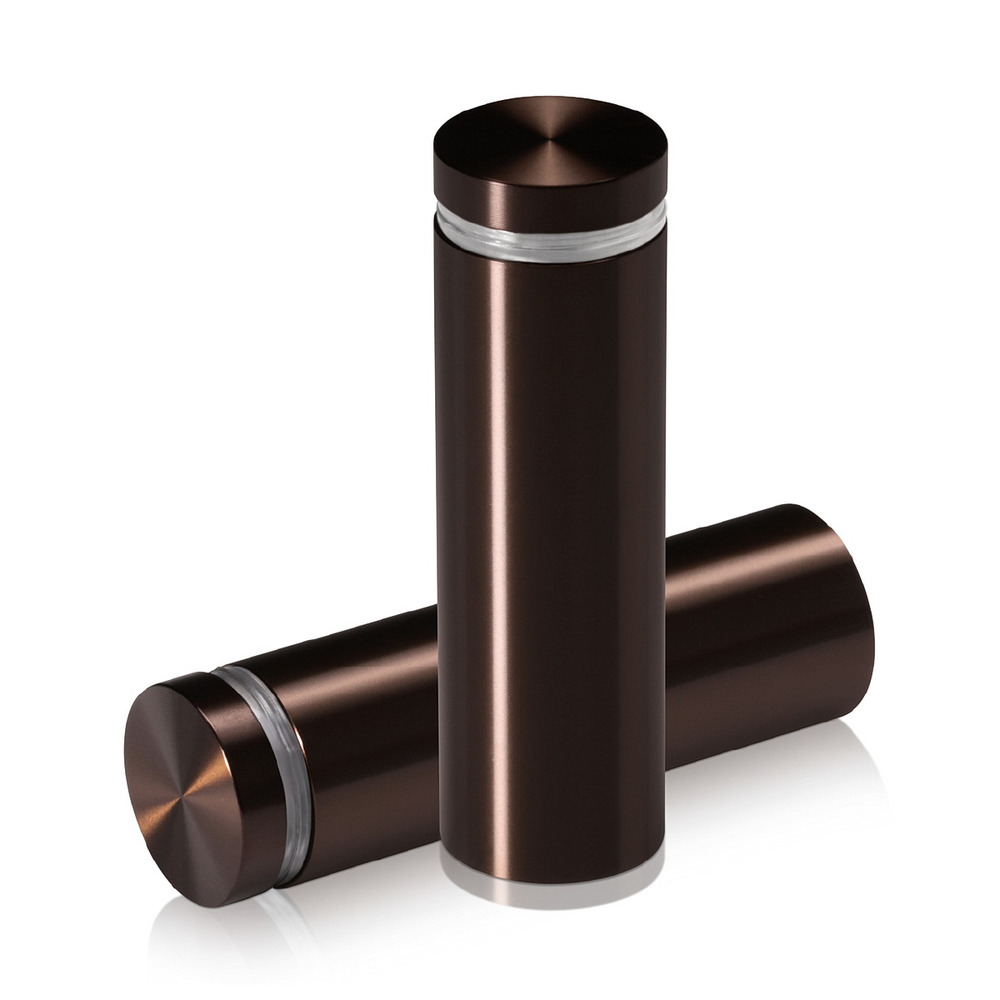

Tamper Proof Aluminum Flat Head Standoffs, Diameter: 7/8'', Standoff: 2 1/2'', Bronze Anodized Finish

Product 1

7/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH22-70AB
Unit Price$7.21
Quantity Price Each (USD)
1-99 $7.21
100-501 $6.85
500+ $6.49
1000+ Contact Us

Click Here To View Similar Products In Our Catalog
Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

7/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH22-70AB
7/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
We are very happy to present the new efficient line of Reverse Threading Tamper Proof standoffs. Our Flat Head 2 1/2'' Standoff 7/8'' Diameter Bronze Anodized standoffs are created and made to the highest criteria; as well as offer the adhering to phenomenal attributes that will permit you to develop one of the most reliable and also eye-catching displays within your budget plan. These brand-new flat head, tamper proof standoffs are crafted with a reverse thread for interior and also outdoor usage. MBS- Standoffs provide a considerable range of dimensions & sizes to fulfill any type of need . Additionally, there is an exceptional option of finishes to accomplish any of your innovative expectations. There will certainly be no quality concerns with MBS's products and also the pricing vs. quality is the most effective you will find in the marketplace.

7/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH22-70AB
Sku FAH22-70AB
Finish Bronze Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 7/8''
Distance From Wall 2-1/2''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 2-1/2''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
