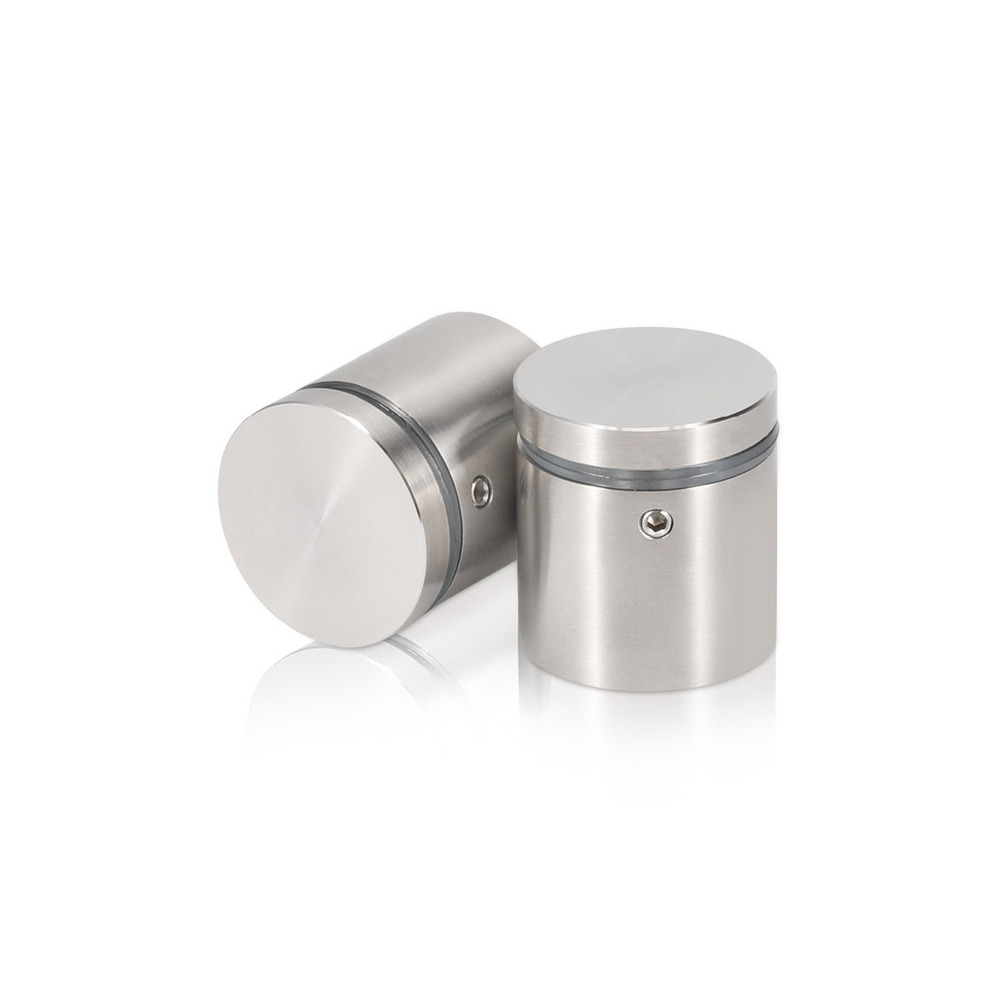

1-1/4'' Diameter X 1'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']

Product 1

1-1/4'' Diameter X 1'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']

SKU: 316LBLS30-30
Unit Price$12.77
Quantity Price Each (USD)
1-99 $12.77
100-501 $12.13
500+ $11.49
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Grade:
Select Finish:

Satin Brushed

1-1/4'' Diameter X 1'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']

SKU: 316LBLS30-30
1-1/4'' Diameter X 1'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']
Description:
Keep your hard work safe with our Locking Tamper Proof Standoffs for Coastal Environments! Our Tamper Proof Stainless Steel Standoffs are perfect for all your indoor or outdoor applications. 316 Grade Stainless Steel has a smooth surface finish, is more corrosion-resistant, and is the most commonly used stainless steel for coastal locations. Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look to the right, you will notice technical descriptions about this particular standoff.

1-1/4'' Diameter X 1'' Barrel Length, (316 Marine Grade) Stainless Steel Brushed Finish. Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']

SKU: 316LBLS30-30
Sku 316LBLS30-30
Finish Satin Brushed
Inside/Outside Inside Or Outside Use
Material Stainless Steel
Material Grade 316
Diameter 1-1/4''
Distance From Wall 1''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 1''
Shape Cylinder
Washer Included Silicone Washers
Thread Type Metric
Thickness Material Accepted Between (0'' and 9/16'')
Thread Metric M10x150
Required Material Hole Size 7/16''
Maximum Thick. Material 9/16''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff, remove the cap, insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Screw Driver, Hand drill, 2MM Hex Key for M4 Set Screw
