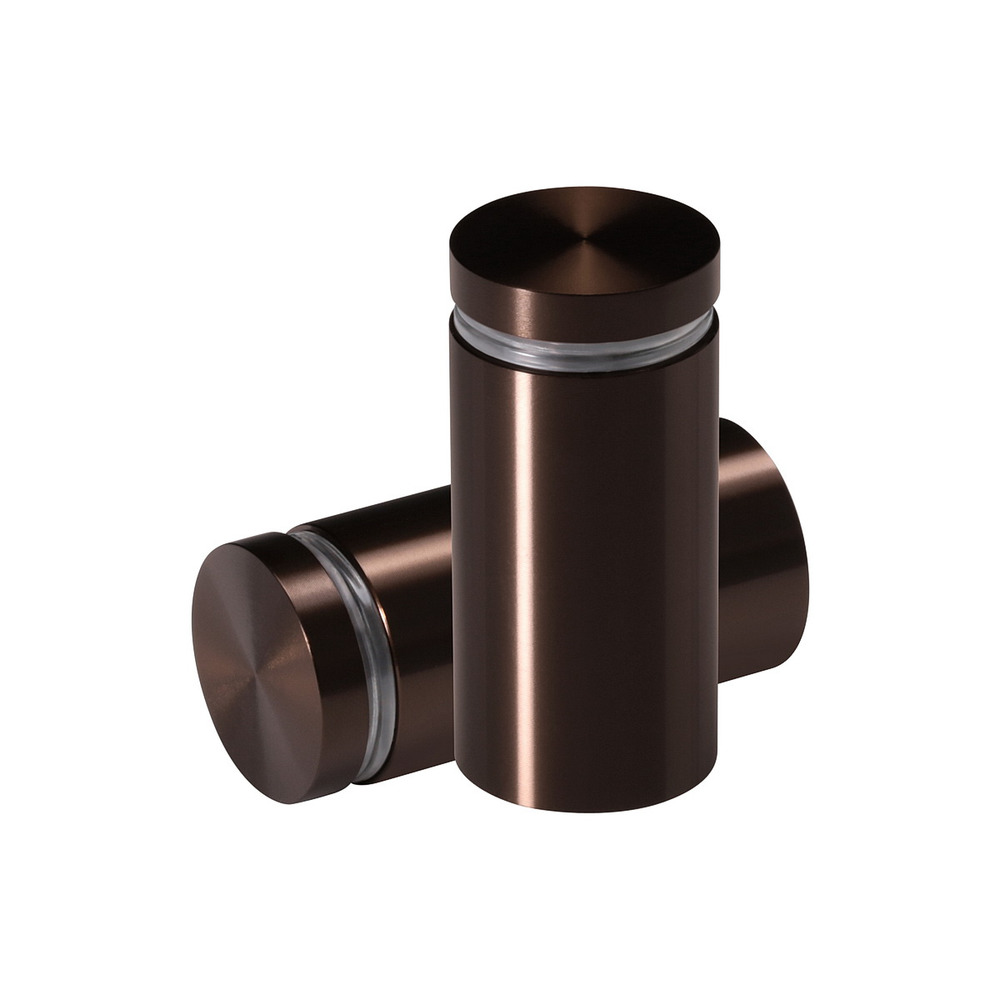

1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff

1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Br

  1. Home
  2. 1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Title:
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
SKU: FAH25-50AB
Unit Price$6.16
Quantity Price Each (USD)
1-99 $6.16
100-499 $5.79
500+ $5.42
1000+ Contact Us
Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

Title:
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
SKU: FAH25-50AB
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:

MBSStandoffs is pleased to provide the modern effective line of Flat Head 1 3/4'' Standoff 1'' Diameter Bronze Anodized, Tamper Proof, Reverse Threading standoffs. Our standoffs are established as well as made to the highest specifications; and offer the complying with exceptional characteristics that will certainly allow you to develop one of the most effective and desirable displays within your spending plan. These new flat head, tamper proof standoffs are crafted with a reverse thread for indoor and also exterior usage. MBSStandoffs offer an extensive range of dimensions & sizes to meet any sort of demand . Furthermore, there is a superb selection of finishes to accomplish any one of your innovative expectations. There will certainly be no top quality concerns with our items and the prices vs. quality is the very best you will find within the signaage industry.

Title:
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
SKU: FAH25-50AB
Sku
FAH25-50AB
Finish
Bronze Anodized
Inside/Outside
Inside Or Outside Use
Material
Aluminum
Diameter
1''
Distance From Wall
1-3/4''
Material Grade
6063
Cap Height
3/16''
Solid/Hollow
Solid
Head Shape
Flat
Length
1-3/4''
Shape
Cylinder
Washer
Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
