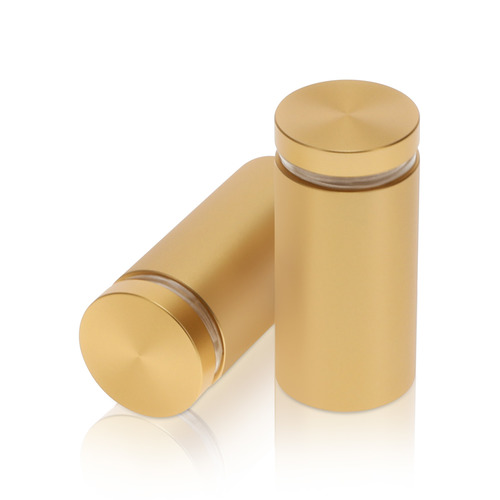

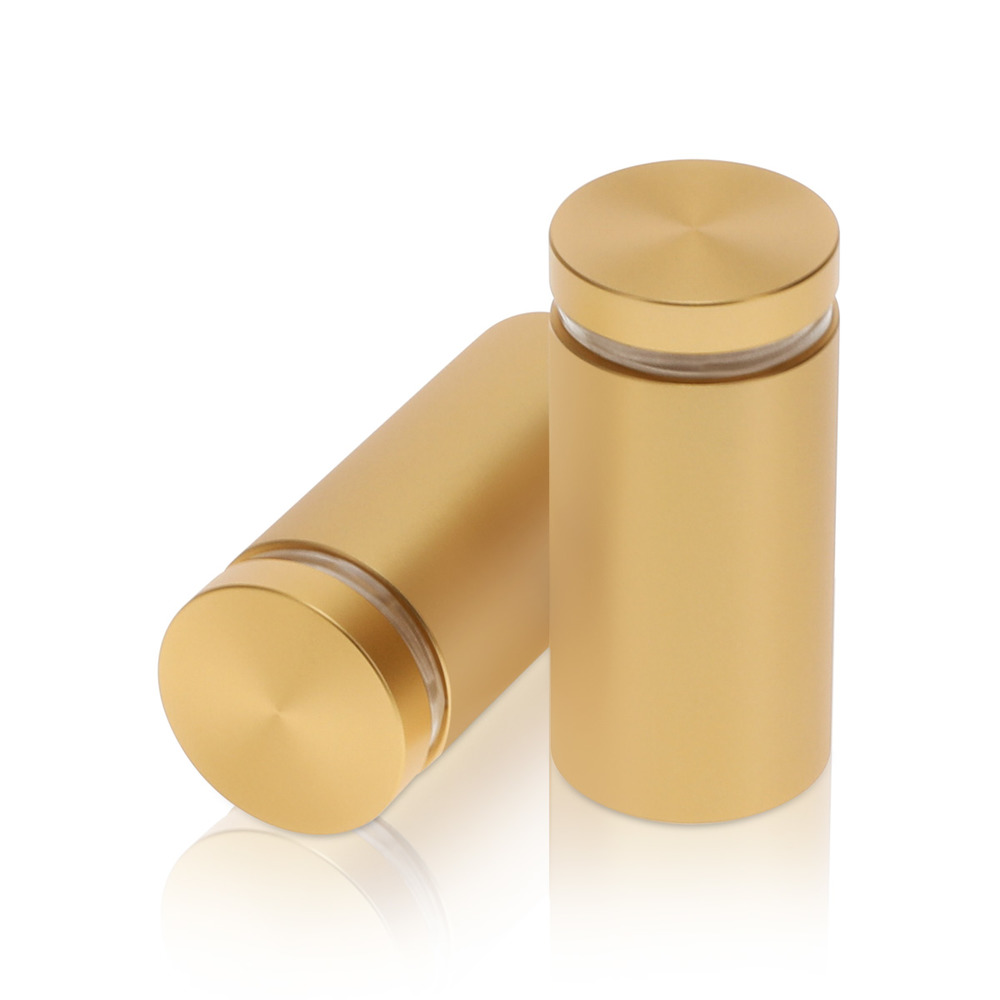

1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Ch

  1. Home
  2. 1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Title:
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
SKU: FAH25-50BR
Unit Price$5.92
Quantity Price Each (USD)
1-99 $5.92
100-499 $5.56
500+ $5.21
1000+ Contact Us
Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

Title:
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
SKU: FAH25-50BR
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:

The New MBS-Standoffs 1 3/4'' Standoff, 1'' Diameter Clear Anodized Flat Head, Reverse Threading, Tamper Proof anodized aluminum standoffs. Our standoffs are developed and also produced to the greatest requirements; as well as offer the following remarkable characteristics that will certainly allow you to develop one of the most effective and eye-catching displays within your budget. These brand-new flat head, tamper proof standoffs are engineered with a reverse thread for indoor and outdoor use. MBS-Standoffs supply an extensive range of dimensions & sizes to fulfill any kind of demand . Additionally, there is an exceptional variety of finishes to meet any one of your creative assumptions. There will clearly be no high quality concerns with our products and the rates vs. quality is the best you will certainly locate on the net.

Title:
1'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
SKU: FAH25-50BR
Sku
FAH25-50BR
Finish
Champagne Anodized
Inside/Outside
Inside Or Outside Use
Material
Aluminum
Diameter
1''
Distance From Wall
1-3/4''
Material Grade
6063
Cap Height
3/16''
Solid/Hollow
Solid
Head Shape
Flat
Length
1-3/4''
Shape
Cylinder
Washer
Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
