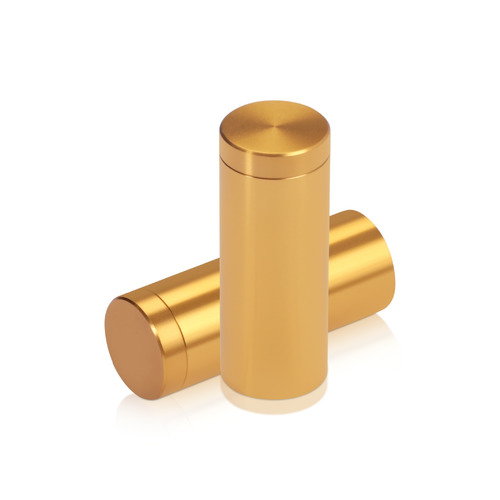

5/8'' Diameter X 1-1/2'' Barrel Length, Affordable Aluminum Standoffs, Gold Anodized Finish Easy Fasten Standoff (For Inside / Outside use)

Product 1

5/8'' Diameter X 1-1/2'' Barrel Length, Affordable Aluminum Standoffs, Gold Anodized Finish Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']

SKU: AS16-38GD

Select Your Preferences

Diameter:
Distance From Wall:
Finish:
Unit Price$3.74
Quantity Price Each (USD)
1-99 $3.74
100-499 $3.55
500+ $3.37
1000+ Contact Us

Click Here To View Similar Products In Our Catalog

5/8'' Diameter X 1-1/2'' Barrel Length, Affordable Aluminum Standoffs, Gold Anodized Finish Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']

SKU: AS16-38GD
5/8'' Diameter X 1-1/2'' Barrel Length, Affordable Aluminum Standoffs, Gold Anodized Finish Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']
Description:
Affordable Aluminum Standoffs are perfect for all your indoor and outdoor applications. The sophisticated coatings that we carry will certainly provide your project a unique look that will definitely make it stand out like most standoffs systems from MBS Standoffs! Thanks to the easy setup process you could have an exhibit displayed anywhere you would certainly like quickly! If you look, listed below you will see data sheet summaries concerning this particular standoff. Dull Anodized Aluminum 5/8'' Diameter, 1 1/2'' Standoff.

5/8'' Diameter X 1-1/2'' Barrel Length, Affordable Aluminum Standoffs, Gold Anodized Finish Easy Fasten Standoff (For Inside / Outside use) [Required Material Hole Size: 7/16'']

SKU: AS16-38GD
Sku AS16-38GD
Finish Gold Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 5/8''
Distance From Wall 1-1/2''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 1-1/2''
Shape Cylinder
Washer Not Included
Thread Type Metric
Thickness Material Accepted Between (0'' and 9/16'')
Thread Metric M10
Required Material Hole Size 7/16''
Maximum Thick. Material 9/16''
Screw Size for Installation #6
Installation

The installation process is very easy! First utilize your surface to mark the holes. Next you will want to drill a hole and insert your anchors.
Take your standoff, remove the cap, insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC5, ANC5Z
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware #6 Screw & Anchor
Tools Required Screw Driver, Hand drill
