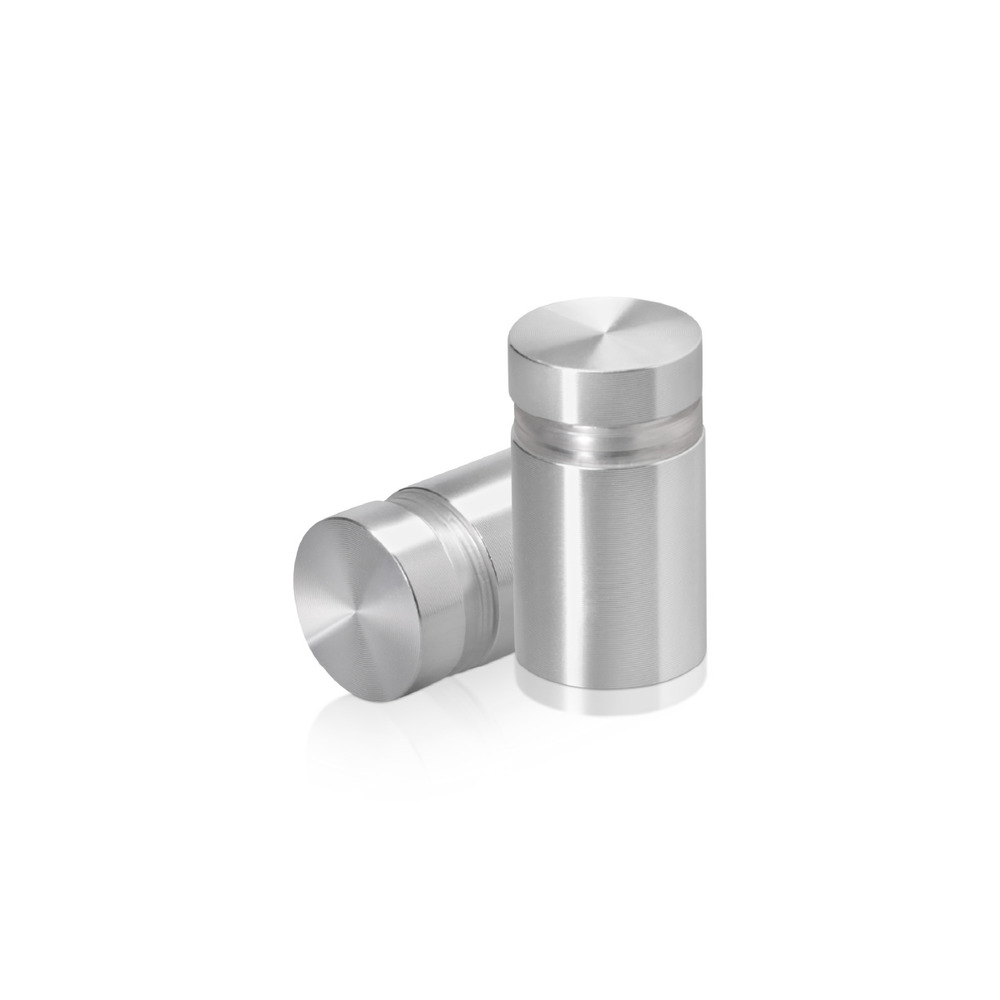

Tamper Proof Aluminum Flat Head Standoffs, Diameter: 5/8'', Standoff: 3/4'', Clear Anodized Shiny Finish

5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Sh

  1. Home
  2. 5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Title:
5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
SKU: FAH16-25AS
Unit Price$2.87
Quantity Price Each (USD)
1-99 $2.87
100-499 $2.70
500+ $2.53
1000+ Contact Us
Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

Title:
5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
SKU: FAH16-25AS
5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
We are honored to offer the original reliable line of Reverse Threading, Flat Head, Tamper Proof anodized aluminum standoffs. Our Flat Head 3/4'' Standoff, 5/8'' Diameter, Shiny Anodized standoffs are developed and made to the highest criteria; and provide the following extraordinary qualities that will defiantly enable you to create the most efficient and appealing displays within your budget. These new flat head, tamper proof standoffs are engineered with a reverse thread for interior as well as exterior usage. MBS-Standoffs offer a substantial selection of sizes & dimensions to meet any sort of need . In addition, there is an excellent choice of finishes to satisfy any one of your imaginative assumptions. There will clearly be no top quality concerns with MBS's products and also the pricing vs. quality is the very best you will find in the sign hardware industry.
Title:
5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
SKU: FAH16-25AS
Sku
FAH16-25AS
Finish
Silver Anodized
Inside/Outside
Inside Or Outside Use
Material
Aluminum
Diameter
5/8''
Distance From Wall
3/4''
Material Grade
6063
Cap Height
3/16''
Solid/Hollow
Solid
Head Shape
Flat
Length
3/4''
Shape
Cylinder
Washer
Included
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #6
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware #6 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
